EAE Industrial E-LINE MK (100A - 160A - 225A)
"Flexibility"
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Turkey

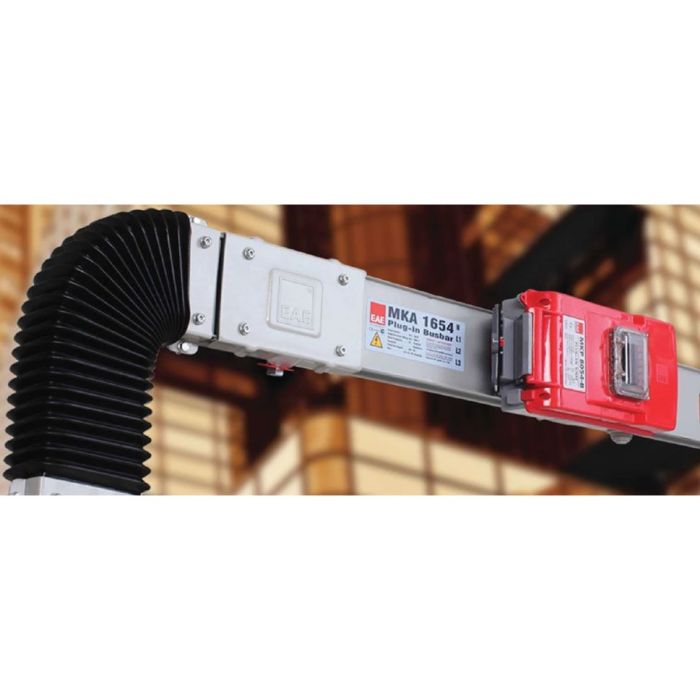

- E-LINE MK busbars are small power range busbar systems which provide flexible and cost-effective solutions for the transmission and distribution of electricity in small-sized enterprises, workshops and industrial facilities.
- The E-LINE MK range can be used where the different amounts of energy is required through the range of plastic tap of boxes.
- This is one of the advantage that it is fast and easy mounting.
- Hinged and locked IP55 covers.
- There are 10 plug in points for every 3Mtrs length.
- It is a Single bolt construction.
- Current ratings for Aluminium conductor 100A, 160A
- Current ratings for Copper conductor 100A, 160A, 225A
- 0.6 mm Thick Epoxy painted (RAL 7038) Galvanized Housing
- Rated Insulation Voltage shall be 690V
- Conductors are fully tin plated
- 4 or 5 conductors
- Special Block Joints
- Self-Extinguishing Materials (UL-V0) for Tap of Box
- IP55 protection class
- Clean Earth option
