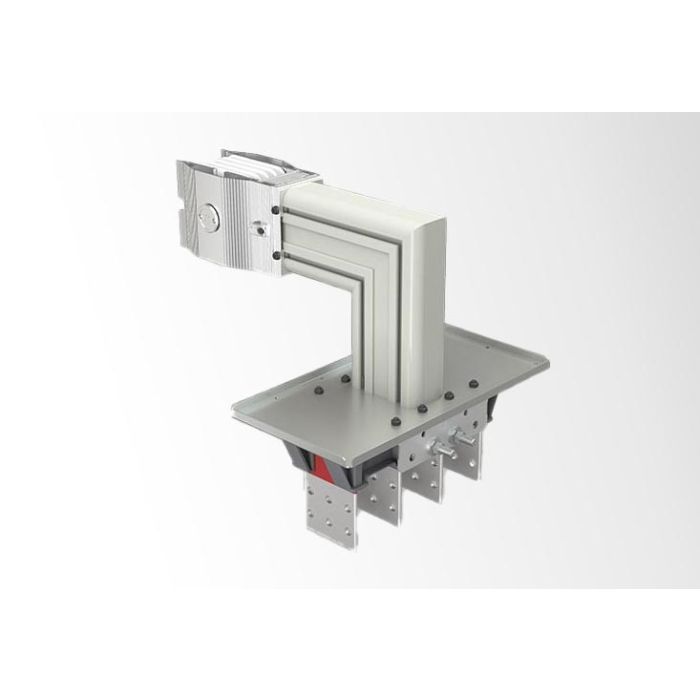

E-Line CCR Cast Resin Busbar System (600–6300 A)

The E-Line CCR Cast Resin Busbar is a heavy-duty power distribution solution engineered for maximum durability in demanding environments. With a current range of 600 A to 6300 A, it delivers reliable performance in outdoor, industrial, and tropical conditions. Its unique DUROCOMP composite structure, combining silicon minerals with epoxy resin inside a robust aluminum housing, ensures exceptional thermal stability, electrical insulation, and mechanical protection.

Built with tin-plated copper and aluminum conductors, the E-Line CCR maintains high conductivity while resisting corrosion. Certified to IEC 61439-6, it provides IP68 protection, fire resistance, and chemical resilience, making it the perfect choice for critical applications in energy plants, heavy industry, and infrastructure projects.

• Current capacity from 600 A to 6300 A
• IP68 protection for outdoor and harsh environments
• Aluminum housing with DUROCOMP composite (silicon minerals + epoxy resin)
• Tin-plated copper and aluminum conductors for high conductivity & corrosion resistance
• Epoxy insulation on conductors for enhanced safety
• High mechanical strength and thermal performance
• Resistant to fire, chemicals, corrosion, and seismic stress
• Fully compliant with IEC 61439-6 standards
• Compatible with E-Line KX busbar modules
