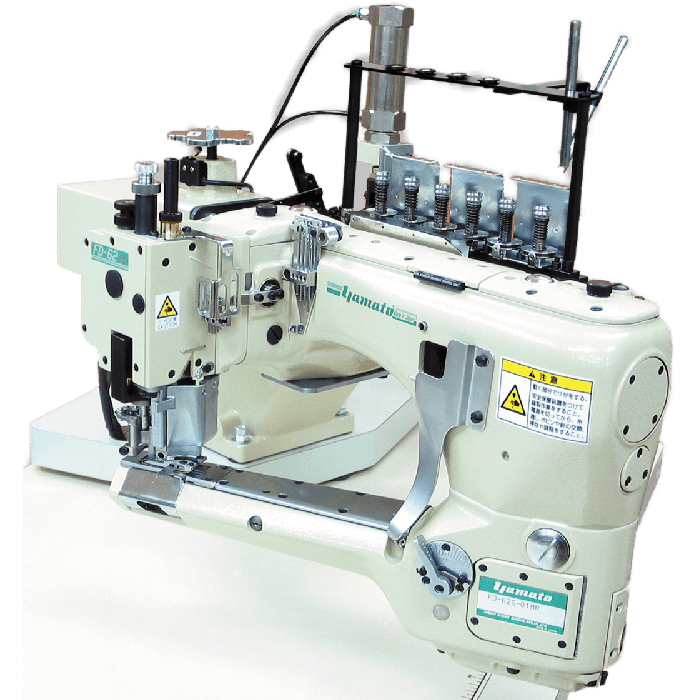

YAMATO FD-62G 4-needle Industrial Flat-Seamer
- The small size of the cylinder enables the operator to carry out small tubular operations
- The unique design of the thread eyelets enables the smooth supply of threads
- The differential feed amount is easily adjustable using the outer lever
- Tension on the thread can also be adjusted giving smooth seams
- YAMATO’s ‘non-stain’ mechanism prevents oil stains on materials. It improves the durability of the machine and saves the time and cost expended on oil-stain removal
- The compact motor is connected to the main shaft of the machine without the V-belt. It saves start-up time and improves controllability
- Since the coupling portion is covered, noise and vibration are significantly reduced
- The new set-up improves operability and reduces operator fatigue
- The light-weight design enables easy installation and makes it easy to re-locate the machine according to production requirements
- There are sub-models available for this machine that can sew a wide variety of materials under different sewing conditions
- The pressor foot floating system enables the smooth feed of materials of varying thickness
- The movable looper enables the sewing of different materials
- Product includes stand, table and motor
Specification
Model | Remarks | ||||||||
FD-62G-01MR | 4 | 6 | 5.2 | 1.6 - 2.5 | 1:0.7 - 1:1.5 | 8 | 30 | 4200 | Cutting one side fabric edge |
FD-62G-01MS | 4 | 6 | 6 | 1.6 - 2.5 | 1:0.7 - 1:1.5 | 8 | 30 | 4200 | Cutting one side fabric edge |
FD-62G-03MR | 4 | 5 | 5.2 | 1.6 - 2.5 | 1:0.7 - 1:1.5 | 8 | 30 | 4200 | Cutting one side fabric edge |
FD-62G-03MS | 4 | 5 | 6 | 1.6 - 2.5 | 1:0.7 - 1:1.5 | 8 | 30 | 4200 | Cutting one side fabric edge |
FD-62G-07MS | 4 | 6 | 6 | 1.6 - 2.5 | 1:0.7 - 1:1.5 | 6 | 30 | 4200 | Cutting both side fabric edge |
FD-62G-12MR | 4 | 6 | 5.2 | 1.6 - 2.5 | 1:0.7 - 1:1.5 | 6 | 30 | 4200 | Cutting both side fabric edge |
FD-62G-12MS | 4 | 6 | 6 | 1.6 - 2.5 | 1:0.7 - 1:1.5 | 6 | 30 | 4200 | Cutting both side fabric edge |
FD-62G-12HR | 4 | 6 | 5.2 | 1.6 - 2.5 | 1:0.7 - 1:1.5 | 6 | 30 | 4200 | Cutting both side fabric edge |
FD-62G-12HS | 4 | 6 | 6 | 1.6 - 2.5 | 1:0.7 - 1:1.5 | 6 | 30 | 4200 | Cutting both side fabric edge |
FD-62G-20HR | 4 | 6 | 5.2 | 1.6 - 5.0 | - | 7 | 30 | 3500 | Without knives |
