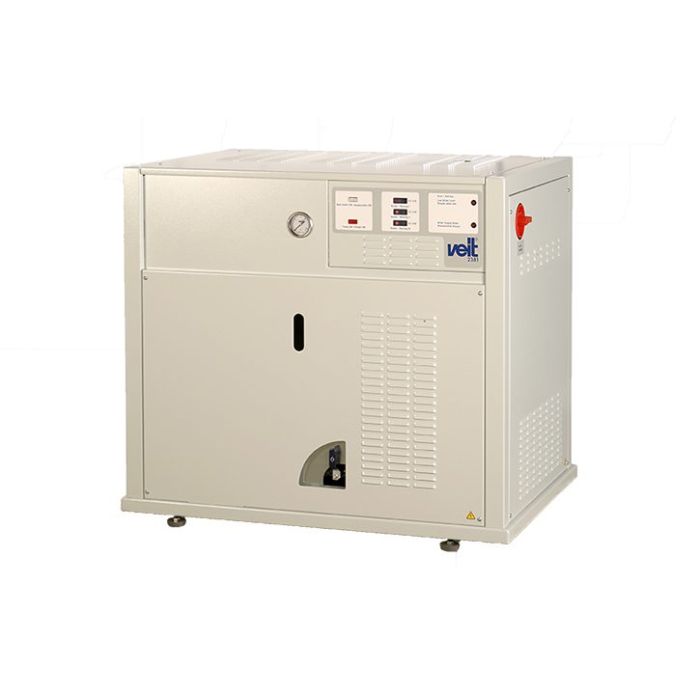

VEIT 2381 High Pressure Steam Station
₹0.00
Universal high-capacity steam station with 75-litre tank for stable steam at industrial scale. Choose 40 kW (55 kg/h), 50 kW (68 kg/h), or 60 kW (78 kg/h) at 400 V. Easy to install and maintain, with stainless-steel feedwater/blow-down tanks, electronic water-level control, double low-water protection, and low-load heating elements for long life. Supports tandem operation (stackable) for up to 156 kg/h steam output.
See all SpecsManufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month Distributer Warranty
Designed in Germany
- Universally applicable steam station
- Engineered for dependable, large steam volumes in production environments
- 75-litre tank (≈ 50 L water + 25 L steam) for optimized steam supply and high operating safety
- Straightforward installation and service keep downtime low
- Models & output
- 40 kW / 400 V → 55 kg steam/h
- 50 kW / 400 V → 68 kg steam/h
- 60 kW / 400 V → 78 kg steam/h
- Built for safety & longevity
- Electronic water-level control + double low-water protection prevents elements from running dry
- Large heating elements with low surface load protect rods and extend service life
- High-temperature feedwater pump for reliable continuous operation
- Integrated stainless-steel feedwater & blow-down tanks for durability and hygiene
- Front-side blow-down access for safe, simple maintenance
- Easy to install & operate
- Compact footprint with clear controls and service points
- 400 V supply; designed for industrial utilities and daily production cycles
- Scalable output
- Tandem operation (connection kit 2381): stack two units to save space
- Up to 156 kg steam/h with increased steam quality and stable peak-demand handling
VEIT 2381 Steam Generator — Technical Specifications
| Power variants | 20 / 30 / 40 / 50 / 60 kW (400 V, 50 Hz) |
| Steam output | 27 / 41 / 55 / 68 / 82 kg/h (for 20→60 kW) |
| Working pressure | 6.0 bar (settable up to 7.0 bar) |
| Connections | Feed water: 3/8″ | Steam: 3/4″ | Condensate: 1/2″ Waste water: 3/4″ | Exhaust steam: 1 1/4″ |
| Dimensions (W×H×D) | 1074 × 956 × 770 mm (≈ 42″ × 37.5″ × 30″) |
| Weight | 340 kg (empty) | 523 kg (filled) |
| Typical users | Irons, finishers, up-steam tables (higher kW) |
| Options | Connection set for tandem operation (Art.-No. 2238120000); Elevation set 30 cm (4 pcs) (Art.-No. 2238120010) |
Operational Advantages
- Optimized steam supply & high safety via ~75 L tank concept (50 L water / 25 L steam)
- Stainless feedwater & blow-down tanks; high-temp feedwater pump
- Electronic water-level control with dual low-water protection
- Large heating elements with low surface load for long service life
- Front-side safe blow-down access
- Tandem mounting kit available for higher combined output (stacked, space-saving)
