NS-9205

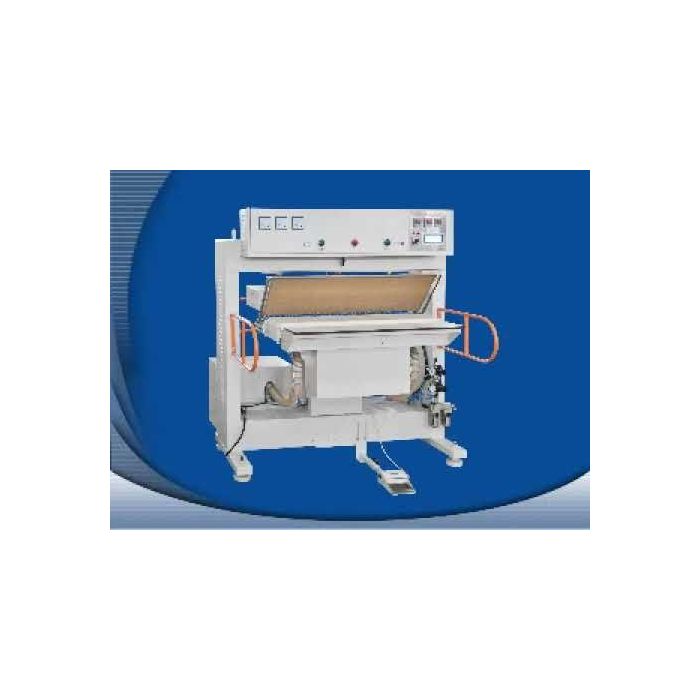

Ngaishing NS-9205 Fusing Machines
₹1,761,000.00
"Suitable for shirt placket and pocket fusing and pressing"
Automatic Placket Fusing Machine
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Designed in Hong Kong SAR China
Features
- Suitable for shirt placket and pocket fusing and pressing
- Adopt pneumatic - hydraulic pressure increasing cylinder for vertical pressing with heavy and even pressure, the fusing result is excellent
- PLC and human friendly touch screen for operation
- Apply three independent digital thermostats for accurate temperature control to the upper heating mould
- Horizontal movement design of the lower mould for easy fabric placing, comfortable operation and high working efficiency
- Independent vacuum and easy to install; fine positioning, cooling and shaping effect
Technical Specifications
| Model | NS-9205 |
| Power Supply | 3PH/380V/50Hz |
| Total Power (kW) | 7.8 |
| Heater Power (kW) | 5.4 |
| Compressed Air Pressure (kgf/cm2) | 5~7 |
| Compressed Air Consumption (L/min) | 200 |
| Average pressure on the working platform (kgf/cm2) | 3.8 |
| Designed temperature (C) | 200 |
| Machine size (mm) | 1500x1670x1600 |
