SKU
NS-860-25-1

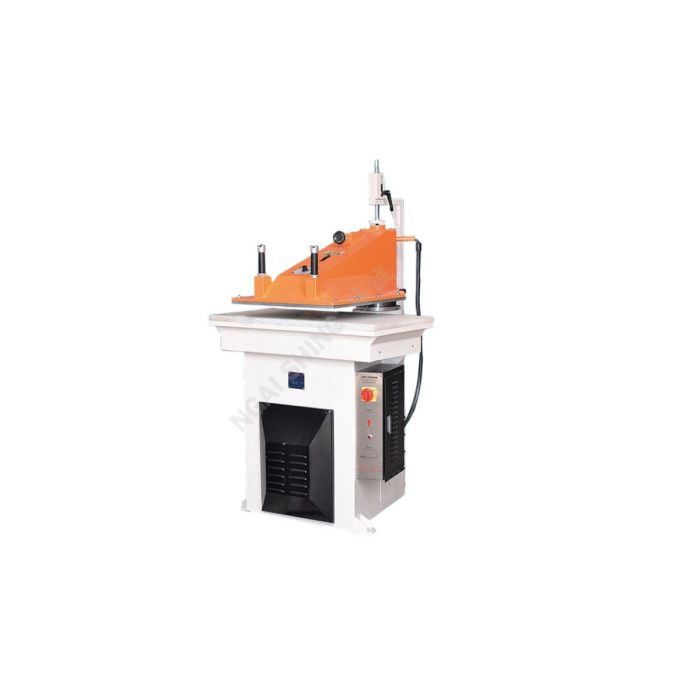

Ngaishing NS-860-25-1 Hydraulic Clicking Press
₹811,200.00
"Cuts almost all fabric types of different width, size & shape - cutter matches automatically to any height"
Hydraulic Swing Arm Cutting Machine
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Designed in Hong Kong SAR China
Features
- Suitable for cutting various materials with one layer or multi- layers, including leather, plastic, canvas, nylon, cardboard, wood, compound materials, packing and other synthetic materials.
- Specific designed structure for matching with cutter and cutting height makes stroke adjustment easy and precise
- Central automatic lubricating system ensures precision of the machine and improves its durability.
- The pressure switch could set stroke automatically to match with cutter at different height, no need to do adjustment
- Equipped with electric control unit to fit die cutting of different size, depth and shape.
- Options: Various die cutters
Technical Specifications
| Model | NS-860-25-1 |
| Power Supply | 3PH/380V/50Hz |
| Power (kW) | 1.1 |
| Cutting Force (tons) | 25 |
| Cutting Area (mm) | 610x610 |
| Cutting Area (mm) | 500x500 |
| Max. Stroke (mm) | 100 |
| Net. Weight (kg) | 570 |
| Dimension Size (mm) | 1000x1000x1370 |
