SKU
NS-1132

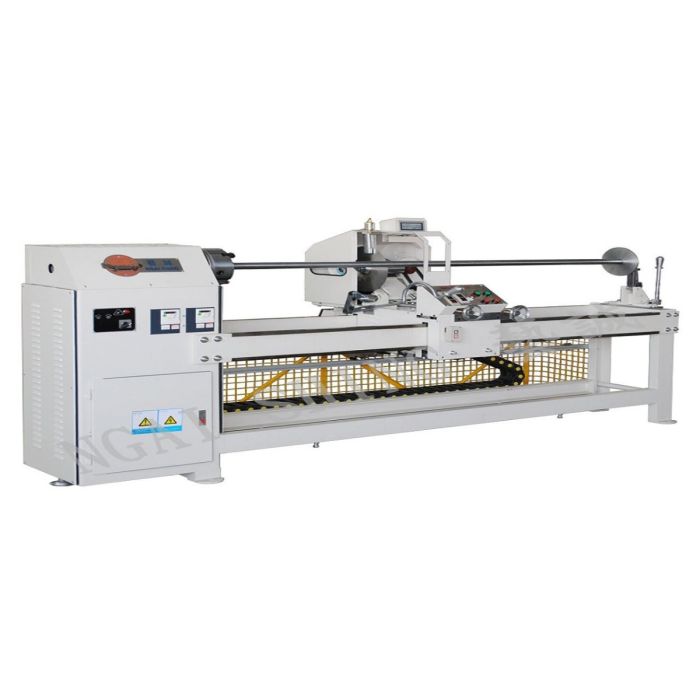

Ngaishing NS-1132 Bias Slitting & Strip Cutting
Features
- Suitable for automatic ribbon cutting
- Standard model with 12 " diameter knife, other models with 18 "knife is also available
- Automatic digital adjustment of cutting width, minimum width is 1/4 "
- Adjustable winding speed at a range of 120~220RPM
- Adjustable stepless speed regulating at a range of 2~1200RPM
- Equipped with 360° adjustable knife & grinding machine
- Standard model for 60 " fabric, more available models for 72”,90”
- The precision of cutting is 01mm
"Suitable for automatic ribbon cutting"
Digital Control Semi-automatic Ribbon Cutting Machine With Sharpening Device
Specification
Technical Specifications
| Model | NS-1132-60 | NS-1132-72 | NS-1132-90 |
| Working width | 60" (1524mm) | 72" (1778mm) | 90" (2286mm) |
| Power Supply | 3PH/380V/50Hz | 3PH/380V/50Hz | 3PH/380V/50Hz |
| Total Power (kw) | 3 | 3 | 3 |
| Net weight (kg) | 620 | 650 | 710* |
| Machine size (mm) | 2620×1020×1320 | 2930×1020×1320 | 3540×1020×1320* |
