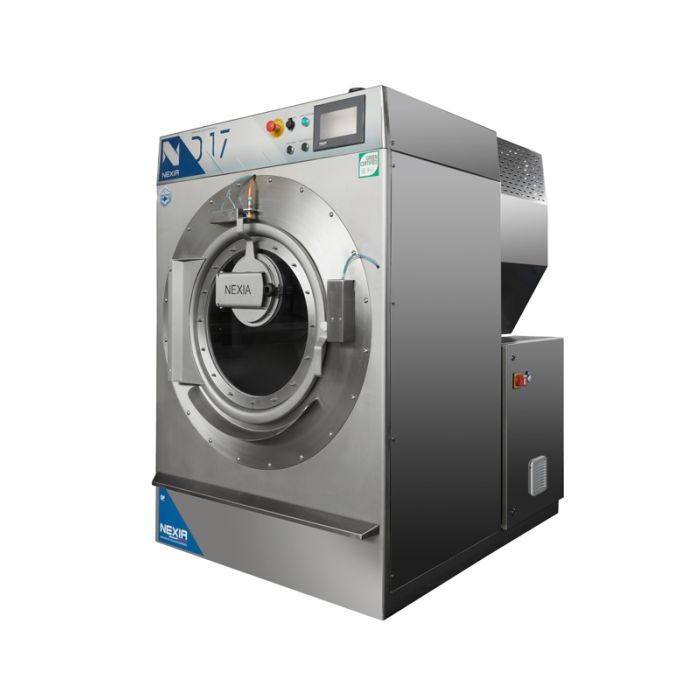

NEXIA INDUSTRIAL ND (SAMPLING) FRONT LOAD CENTRIFUGAL MACHINE FOR GARMENT WASHING AND DYEING
₹0.00
NEXIA ND Series sampling machines comes with a new compact and captivating design. The high-speed dyeing system reduces the use of the liquor ratio and prevents any possible abrasion or knotting during the operation. The system ensures the complete penetration of dyeing even with the most delicate garments fiber reducing considerably the cycle time.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
12 Month Distributer Warranty
Designed in Italy
The main revolutionary system of this new generation machines are the beaters, they are extractable and interchangeable with different shapes for various types of treatments. NEXIA ND sampling series has been projected to reproduce the same results and effects of production machines and satisfy any type of treatment.
OPTIONAL FOR NEXIA ND:
- OZONE treatment application, with both water and dry operations.
- The revolutionary JET System for high-speed dyeing process.
- NDROP double Nebulizer System front and rear.
ND / NDS |
| 5 | 17 | 40 |
Drum diameter | mm | 700 | 950 | 1300 |
Drum Depth | mm | 390 | 700 | 900 |
Drum Volume | lt | 150 | 500 | 1200 |
Door Diameter | mm | 490 | 710 | 800 |
Capacity max | Kg | 5 | 17 | 40 |
Spin speed Max | rpm | 0-480 | 0-450 | 0-350 |
Power installed | Kw | 3 | 5,5 | 11 |
Voltage | Volt/Hz | 400/50 | 400/50 | 400/50 |
Products tank capacity | Lt | 8 | 12 | 30 |
Machine Size ND / NDS |
|
|
|
|
Width | mm | 900 | 1180 | 1560 |
Depth | mm | 1015 | 1465 | 1775 |
Height | mm | 1330 | 1700 | 2060 |
