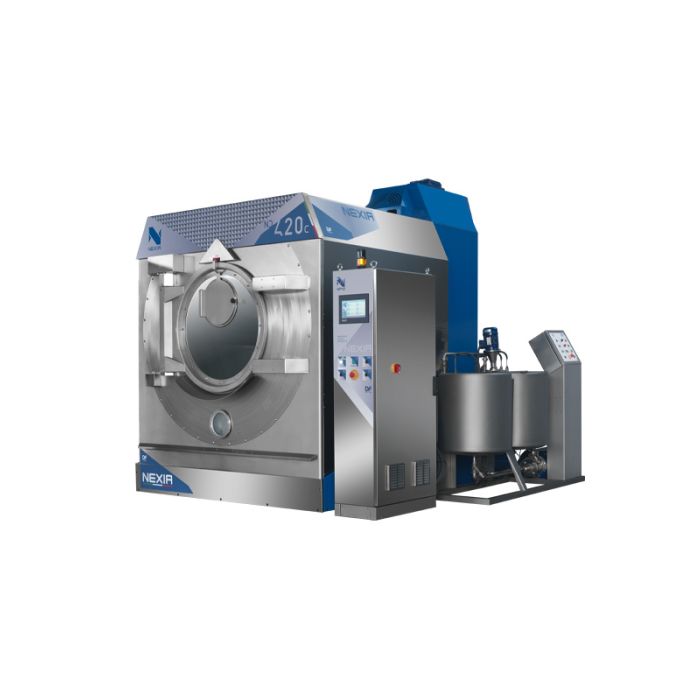

NEXIA INDUSTRIAL ND 420C CENTRIFUGAL WASHING MACHINE FRONTAL TYPE FOR DYEING TREATMENTS
₹0.00
Nexia ND series industrial machine with open pocket drum is designed for washing and dyeing treatments for ready-made garments.ND frontal type machine is equipped with both a low-speed centrifuge (ND 420) and a high-speed centrifuge (ND 420 C).
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
12 Month Distributer Warranty
Designed in Italy
The Nexia ND models are equipped with customized color kitchen which allows for a perfect introduction of dyes and chemical products, guaranteeing an excellent repeatability of the dyeing recipes. The supporting structure of the machine is powerful and particularly sturdy. The main parts in contact with the dyeing bath, are completely made of AISI 316 stainless steel.
STRUCTURE
Manually-operated inspection porthole for sampling located in the main door.
Indirect heating and cooling complete with stainless steel pneumatic valves for steam inlet and outlet.
Variable operation speed controlled by inverter from 2 rpm to 550 rpm.
Electric control panel completely from stainless steel.
Forward tilting system to simplify the unloading operation.
Drum Size |
| 260 | 420 | 520 |
Drum thickness | mm | 4 | 4 | 4 |
Diameter | mm | 1650 | 1865 | 1865 |
Depth | mm | 1200 | 1545 | 1890 |
Volume | It. | 2560 | 4218 | 5160 |
Spin Speed | Rpm | 550 | 550 | 550 |
Steam connection | ø | 1 ¼ II | 1½II | 1½II |
Water inlet connection | ø | 2x2II | 2x2,5II | 2x2,5II |
Bath drain dimension | ø | DN 125 | DN 150 | DN 150 |
Compressed air inlet connection | ø | ¼II | ¼II | ¼II |
Steam in MAX pressure | Bar | 8 | 8 | 8 |
Water in MAX pressure | Bar | 4 | 4 | 4 |
Compressed air in MAX pressure | Bar | 8 | 8 | 8 |
Powered installed | KW | 18,5 | 35 | 42 |
Voltage | Volt/Hz | 400 V-50/60Hz | 400 V-50/60Hz | 400 V-50/60Hz |
Products Tank 1 | lt | 90 | 180 | 180 |
Tank rinsing valve | ø | ¾II | ¾II | ¾II |
Machine Size |
| 250 | 420 | 520 |
Width | mm | 2050 | 2250 | 2250 |
Depth | mm | 2500 | 3050 | 3400 |
Height | mm | 2550 | 2900 | 2900 |
Width (with colour kitchen & electric panel) | mm | 3250 | 3550 | 3550 |
