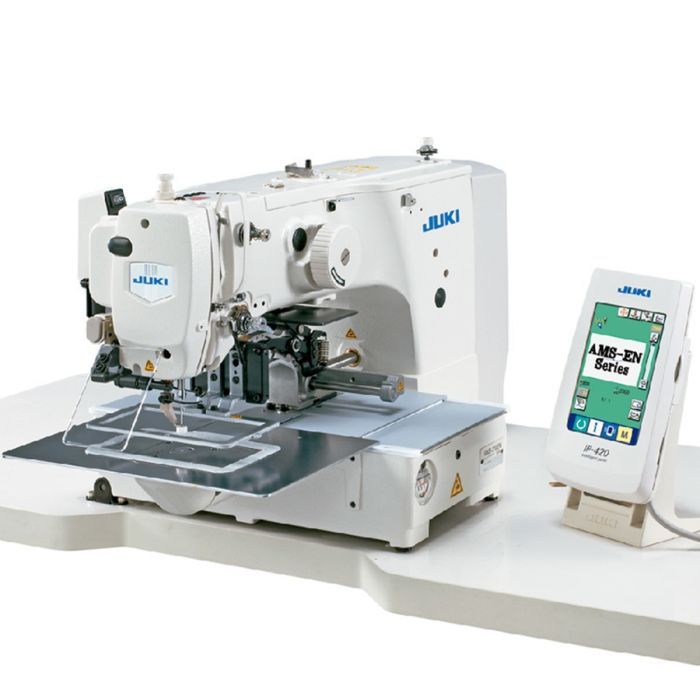

JUKI AMS-210EN-1306/7450 – Computer-Controlled Cycle Sewing Machine (Name Embroidery Type)

The JUKI AMS-210EN-1306/7450 is a dedicated name embroidery cycle machine built on the industry-leading AMS-EN platform. Once the operator places the material on the sewing area, the machine automatically carries out the complete embroidery sequence according to pre-input name data. This fully automated operation ensures beautifully shaped letters, clean edges and consistent stitch formation—regardless of operator skill. Industry-Leading Speed & Productivity The machine delivers sewing speeds up to 2,800 sti/min, reaching maximum speed from the 2nd stitch onward and maintaining it until just before the final stitch. This minimizes cycle time dramatically. A JUKI stepping-motor controlled thread trimmer provides fast, reliable trimming, further boosting productivity. Enhanced Motor & Drive Control A main-shaft direct-drive AC servomotor offers excellent energy efficiency and quick responsiveness, while an encoder-controlled X-Y stepping motor optimizes feed movement according to material thickness and stitch length. Power consumption is 30% lower than the previous AMS-210E, reducing energy cost and heat generation. Superior Stitch Quality – Even at High Speed The encoder-controlled feed mechanism significantly improves positioning accuracy, reducing pattern deformation when sewing thicker or layered materials. A semi-dry head (grease-lubricated needle bar & take-up, minimal oil to hook) eliminates oil stains and improves reliability. Programmable Intermediate Presser To handle multi-layered materials, the intermediate presser can adjust height during sewing, without stopping production: Standard adjustable range: 0–3.5 mm Maximum: 0–7.0 mm Stroke adjustable up to 10 mm This eliminates stitch skipping, thread breakage and material slippage. Flexible Feeding Frame Options Two types are available: Monolithic feeding frame Separately-driven feeding frame (left and right sides move independently) The frame can also be lowered in two steps, allowing more accurate material positioning. Active Thread Tension JUKI’s proven Active Tension system controls thread tension stitch-by-stitch, adjusting automatically according to sewing direction and fabric thickness. This improves appearance and reduces setup change time during style/operation changes. Wide Range of Applications Beyond name embroidery, the machine supports: Free pattern stitching Labels, emblems, Velcro attachment Leveling tacks, shape tacks Reinforcement stitching Special bartacking Custom decorative stitches IP-420 LCD Touch Panel with Advanced Input Functions The color LCD touch panel (standard) offers 14 languages, visual stitch editing, programmable screens and simplified modes for easy operation. Operators can view stitch shape, tension, speed, stitch count and scaling in real time. A USB-ready main body offers massive data storage: Up to 500,000 stitches total 999 patterns, up to 50,000 stitches each Supports USB, FD, SmartMedia, CompactFlash, SD and other media Up to 50 million stitches per media device This makes it a powerful, future-proof embroidery automation system.
