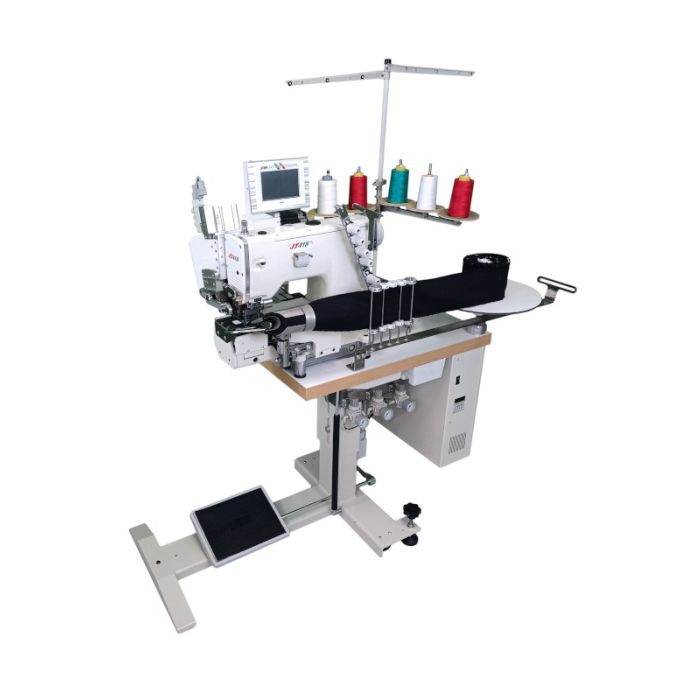

JAM JT418HS Automatic Waistband Machine for Jeans
₹0.00
Sewing Head & Mechanism
KANSAI sewing head: 4 needles, ¼”-1”-¼” gauge.
Cylindrical base, chain stitch design with lower feed and needle feed.
Adjustable-speed electronic synchronized puller for smooth feeding.
Rear clamp ensures straight cuts at the beginning and end of the belt.
Flexibility & Programming
Special JAM system for producing both straight and curved waistbands.
Programmable initial and final belt unstitching.
Belt feeding system with integrated roll holder.
Performance
Suitable for medium to heavy fabrics.
Electronic synchronization of puller and alternating feed ensures constant stitch length, even as fabric speed and thickness vary.
Control & Ease of Use
All functions controlled via intuitive JAM touch screen interface.
Easy programming and adjustment for different waistband applications.
Optional Device
Unstitching ¼”-1”-¼” for only 1st and 2nd needle.
See all SpecsManufacturer Warranty
12 Month manufacturer warranty
Distributor Warranty
3 Month Distributer Warranty
Designed in Italy
The JT418HS is an advanced automatic sewing unit designed for the application of single or double waistband belts on jeans and similar garments, in both continuous and single-piece operations. Equipped with a KANSAI 4-needle chain stitch sewing head on a cylindrical base, along with synchronized electronic pullers and precision rear clamps, the JT418HS guarantees accuracy, flexibility, and high productivity. Its unique JAM system allows the creation of both straight and curved waistbands, while programmable features ensure consistent quality even with medium and heavy fabrics. The intuitive JAM touch screen makes setup and operation simple, even for complex waistband applications.
Technical Specifications
| Sewing head | KANSAI 4-needle chain stitch |
| Control unit | PLC + JAM touch screen |
| Feeding system | Lower & needle feed + synchronized puller |
| Sewing speed | Up to 4000 rpm |
| Stitch length | 2.10–6.40 mm |
| Belt cut height | Max 75 mm |
| Power source | 220 Vac – 50/60 Hz |
| Electric consumption | Max 1.1 kW |
| Air source | 6 bar |
| Air consumption | Max 0.5 l/cycle |
| Dimensions & weight | 126×74×175(H) cm — 170 kg |
