SKU
JAM-JT262HR
JAM JT262HR 2-Needle Lockstitch Pocket Hemmer for Jeans
₹0.00
Sewing & Material Handling
Two-needle BROTHER lockstitch sewing head for durability and precision.
Intermittent conveyor belt synchronized with feed dog, powered by electronic motor.
Adjustable folder for single or double hems; hem height adjustable between 6–27 mm.
Automation & Detection
Photo sensors for fabric detection.
Thread break detection sensors to minimize downtime.
Automatic thread trimmer with vacuum system for clean thread waste removal.
Rotating stacker for accurate stacking and collection of finished pockets.
Control & Usability
JAM touch screen control panel for easy parameter setting.
Electronic control unit developed by JAM for reliability and smooth operation.
Software updates via USB memory.
Sewing head pull-back and conveyor lifting system for easy threading and routine maintenance.
Versatility
Capable of hemming across a variety of fabrics, from rigid denim to flexible stretch materials.
Quick adjustments without changing devices.
Optional Device
Automatic Pocket Loader
Capacity: up to 400 pockets.
Supports pocket sizes up to 270×270 mm.
See all SpecsManufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month manufacturer warranty
Distributor Warranty
3 Month Distributer Warranty
Designed in Italy

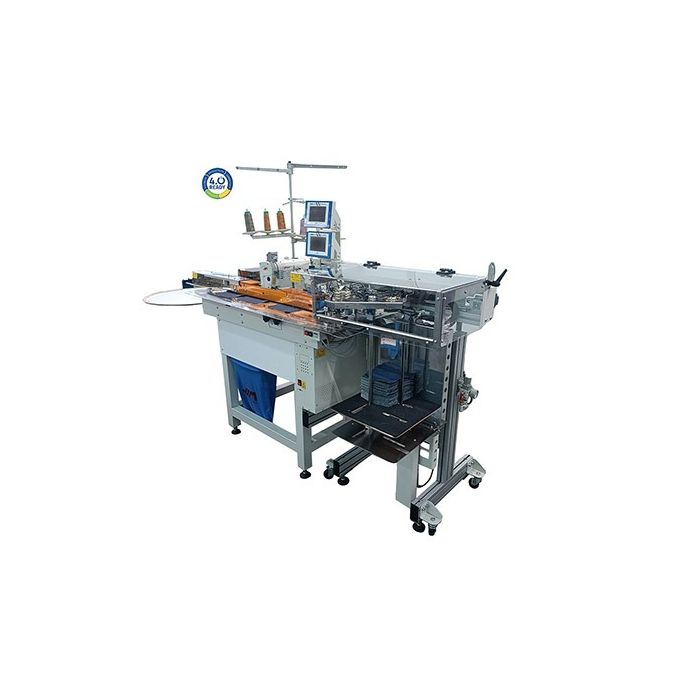

The JT262HR is a high-precision automatic pocket hemming machine designed for jeans and similar garments. Equipped with a robust two-needle BROTHER lockstitch sewing head and an electronically powered intermittent conveyor belt, it ensures smooth, synchronized material handling. With advanced photo sensors, thread break detectors, and an intuitive JAM touch screen interface, the JT262HR delivers consistent, high-quality hemming on a wide range of fabrics—from heavy denim to stretch materials—without requiring component changes. Its adjustable folder supports both single and double hems, making it an adaptable and efficient solution for modern pocket production.
Technical Specifications
Sewing head | BROTHER 2-needle lock stitch |
Control unit | JAM PLC + touch screen |
Feeding system | Conveyor belt synchronized with the feed dog |
Sewing speed | Up to 3000 rpm |
Stitch length | 0.05–5.0 mm |
Average production | 1000–1300 pockets/hour |
Power source | 220 Vac – 50/60 Hz |
Electric consumption | Max 1.5 kW |
Air source | 6 bar |
Air consumption | Max 1.5 l/cycle |
Dimensions & weight | 214×100×171(H) cm — 183 kg |
