SKU
LU-2800V-7-Series

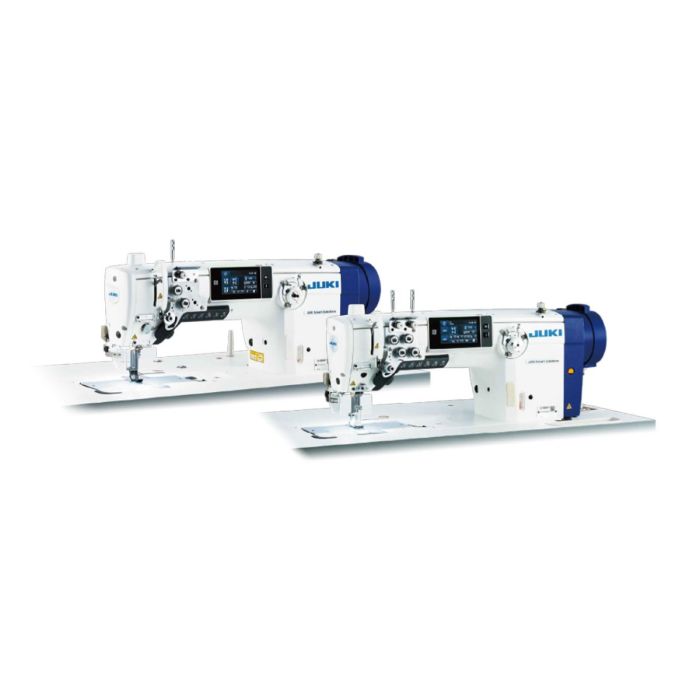

Semi-dry, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook
₹492,000.00
"Inspire the Knowledge in Sewing Adjustment Epoch-making Sewing Systems in history"
Semi-dry Direct-drive, Unison-feed, Lockstitch Sewing System with automatic thread trimmer.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
Technical Specifications
| Model name | LU-2828V-7 | LU-2860V-7 |
| Type | 1-needle, Unison-feed, Lockstitch Sewing System (Shorter - thread remaining type) | 2-needle, Unison-feed, Lockstitch Sewing System |
| Max. sewing speed | 3,500sti/min* | |
| Max. stitch length | 9.0mm | 12.0mm |
| Presser foot | 20mm | |
| Alternating vertical movement (DL) | 9.0mm | |
| Needle thread tension | 0～200 | |
| Presser foot pressure | 0～200 | |
| Hook | Vertical axis 2.7 fold-capacity hook | Vertical axis 2.0 fold-capacity hook |
| Needle | 134×35 Nm140（#22）, Nm125～180（#20～#24） | 134×35 Nm160（#23）, Nm125～200（#20～#25） |
| Thread | 60/ 3 ～ 20/ 3（#30～#5） | 60/ 3 ～ 10/ 3（#30～#0） |
| Machine head weight | 66Kg | 68Kg |
