DSU145-Series

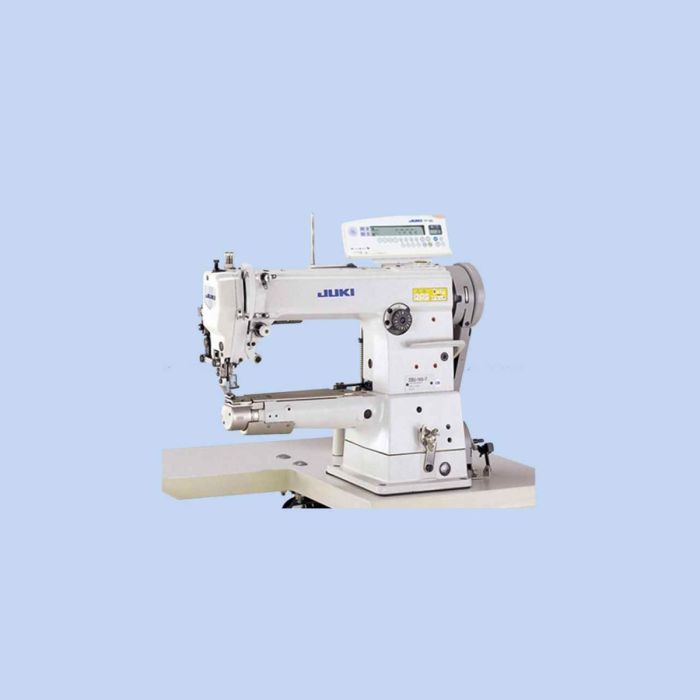

juki DSU145 Series leather & heavy duty machines
"Demonstrates outstanding capabilities when sewing small-diameter sections"
Cylinder-bed, 1-needle, Top and Bottom-feed, Lockstitch Machine with Automatically Lubricated for Hook
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
Features
- Consistent sewing performance at a high speed
- Optional devices make operation easier
- Maintenance-free hook components
- Excellent for sewing sharp curves
- Higher lift of the presser foot
Technical Specifications
| Model | DSU-145 | DSU-145-7 |
| Max. sewing speed | 2,000 rpm | 2,000 rpm |
| Max. stitch length | 6mm (forward/backward) | 6mm (forward/backward) |
| Needle bar stroke | 37mm | 37mm |
| Lift of the presser foot | By hand: 7mm, By knee: 15mm | By hand: 6mm, By knee: 13mm |
| Alternating vertical movement | 2.5mm | 2.5mm |
| Hook | Horizontal-axis double-capacity hook | Horizontal-axis double-capacity hook |
| Cylinder-bed diameter | 50mm | 50mm |
| Distance from needle to machine arm | 270mm | 270mm |
