DSC-Series

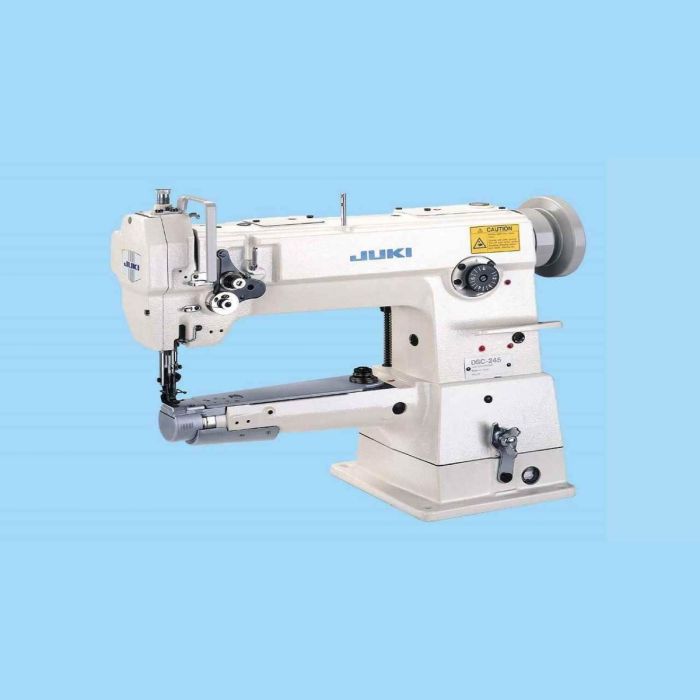

juki DSC leather & heavy duty machines
"Has consistent seam quality & sharp-curve sewing function"
Cylinder-bed, 1-needle, Unison-feed, Lockstitch Machine
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
Features
- Consistent seam quality
- Excellent for sewing sharp curves
- When using the knee lifter, the lift of the presser foot is as high as 15mm (Machine without a thread trimmer)
- The horizontal feed is best suited for attaching of piping tape (V type)
Technical Specifications
| Model | DSC Series 244, 245, 246 |
| Max. sewing speed | 2,200 spm |
| Max. stitch length | 6mm (normal/reverse feed) |
| Needle bar stroke | 36 mm |
| Lift of the presser foot | By hand: 9mm, By knee: 15mm |
| Thread take-up | Slide type |
| Hook | Horizontal-axis full rotary, double-capacity hook |
| Cylinder-bed diameter | 46mm |
| Distance from the needle to machine arm | 264mm |
