SKU
DLN-9010A

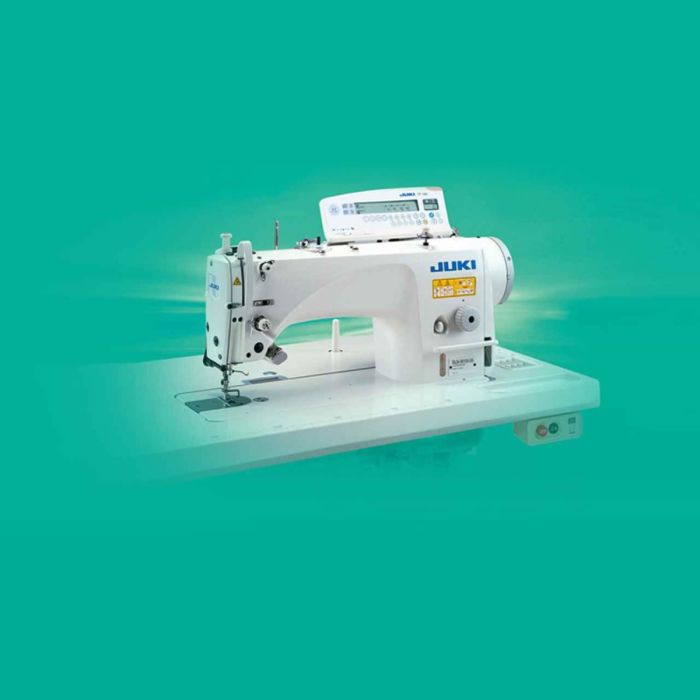

JUKI DLN-9010A Single Needle Lock Stitch Machine
"Direct-drive, High-speed, 1-needle, Needle-feed, Lockstitch Machine."
This is a needle-feed type DDL-9000 Series sewing machine that has been highly applauded as the top-of-the-line lockstitch machine with a thread trimmer.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
Features
- Provided with various easy-to-operate functions for increased operability.
- Built in bobbin thread winder.
- Automatic reverse feed function.
- The machine is equipped as standard with a micro-lifter.
- The lubricating hole is located on the arm.
- The machine is installed with a highly reliable needle feed mechanism.
Technical Specifications
| Technical Specifications - DLN-9010A | |
| Application | For light- to medium-weight materials |
| Max. sewing speed | 5,000sti/min |
| Max. stitch length | 4.5mm* |
| Needle bar stroke | 33mm |
| Lift of the presser foot | By hand: 5.5mm, By knee: 15mm(max.) Auto: 10mm |
| Hook | Automatic-lubricating full-rotary hook |
| Distance from needle to machine arm | 300mm |
| Bobbin thread winder | Built-in the machine head |
| Micro-lifter screw | Provided as standard |
