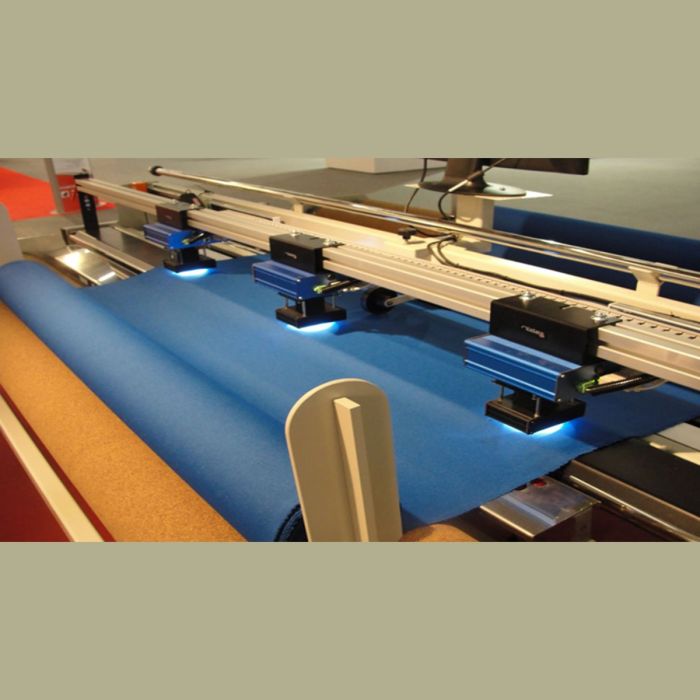

c-tex Relaxing Machine Fabric Inspection
"Optimum handling and utilization of knitted fabric"
With the increasing use of elastomeric and Lycra fabrics in all sectors of apparel and textile industries the c-tex RM Relaxing Machine was developed to provide optimum handling and utilization of tension sensitive fabric. The c-tex relaxing machine gives you rolls with consistent tension that can be spread immediately on automated spreading machines, saving time and space while also reducing out of tolerance cut parts and re-working.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Features & Advantages
- Roll to roll process so that material can be used by an automated spreading machine
- 2 stages of fabric relaxation: last-loop and air floatation
- Edge control for increasing productivity of spreading machines
- Automatic width monitoring at 20 times per second for optimizing markers and nests
- Length measurement by calibrated pressure adjustable digital output measuring wheel
- Automated collection of data for use by management for cutting room planning
Technical Specifications
| Technical Specification | Metric | Imperial |
|---|---|---|
| Speed | 0 to 60 metres/min | 0 to 65 yards/min |
| Fabric width | 2500mm | 98 inches |
| Overall width | 3800mm | 149 inches |
| Overall machine height | 1600mm | 63 inches |
| Overall machine depth | 1800mm | 71 inches |
| Standard roll diameter | 450mm (larger on request) | 18 inches |
| Standard roll weight | 80KG (heavier on request) | 176 lb |
| Electrical requirements | 240v, 50Hz (single phase) | 110v, 60Hz |
| Pneumatical requirement | 6 mar | 80 p.s.i. |
