Super-Duty-Slitting-Machine--562BK--567BK

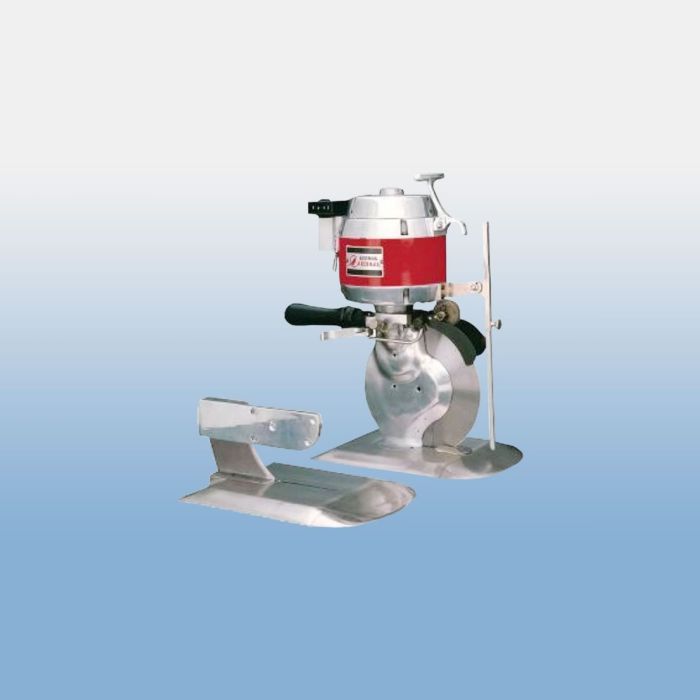

Eastman Super Duty Slitting Machine - 562BK - 567BK Manual Cutting
"Heavy duty round knives were invented in America"
The Heavy Duty and Super Duty round knife machines can easily cut through up to eighty durometer rubber as well as plastic sheeting and dense fabrics that require a stronger motor and greater height capacity.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in United States
Features
Super-duty Cutting
Cutting of heavy-material with 1.25hp, 120 grit stones and a high speed steel blade
Accuracy
Eliminates cutting distortion due to the narrow silhouette standard, extremely low base plate
Stability
Vibration-free cutting with smooth and easy maneuverability
Efficiency
- Simple handling of the machine due to its low center of gravity
- Single-hand engaging of power supply via the Patented Uni-Safe Terminal Block and Attachment Plug.
- Ability to reduce speed to eliminate fusing, provided by the dual speed option
Technical Specifications
| Super Duty Slitting Machine Technical Specifications | |
|---|---|
| Motors | 110v, 1ph, 50/60Hz, 220v, 1ph or 3ph, 50/60Hz, 380v, 3ph, 50Hz |
| Horsepower | 0.65hp, 1ph // 1.25hp, 1ph, 0.93hp, 3ph // 2.2hp, 3ph |
| Weight | 30lbs. (13.6kg) // 36lbs. (16.3kg) |
| Weight w/strip gauge | 40lbs. (18.24kg) // 46lbs. (20.98kg) |
| Blades | Standard: Carbon Steel, Optional: High Speed Steel, Grooved Blade, PTFE Coated, Slotted |
| Sharpener Stones | No |
| Standard Features | No |
| Options | Knife Lubricator, Strip Gauge, Long Handle, Stationary Base Plate |
| Blade Size | 7.5in (19.1cm) |
| Cutting Capacity | 2in. (5.08cm) |
