Hot-Cloth-Drill--CD3H

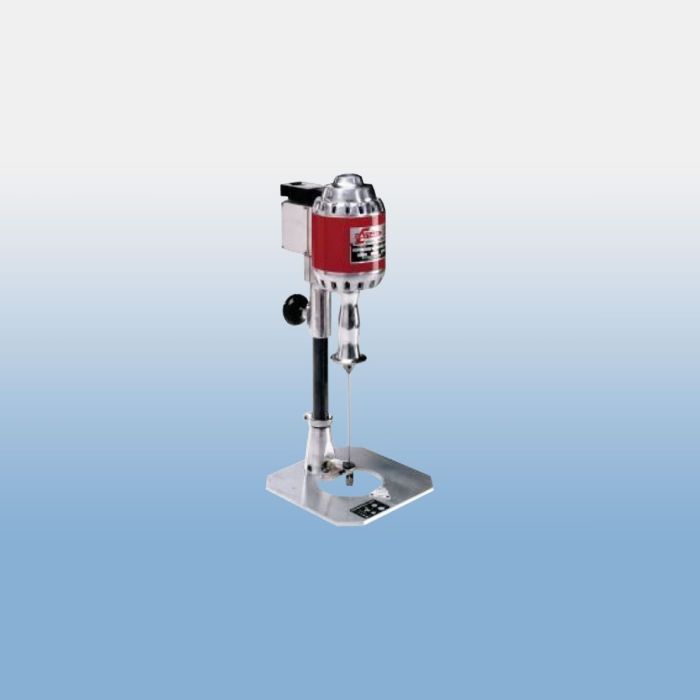

Eastman Hot Cloth Drill - CD3H Manual Cutting
₹275,500.00
"Making marks for identification while cutting fabric"
The Hot Cloth drill leaves identifiable marks on loosely woven or knit fabrics, where an ordinary drill mark would not be detected. The cloth drill fuses tightly woven synthetic materials, throughout the lay, thereby eliminating distortion in the marker.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in China
Features
Telescoping drive shaft with a powerful AC motor for dependability and long service life Drill available in three sizes, with numerous hole diameters and drill types.
Technical Specifications
| Hot Cloth Drill Technical Specifications | ||
| Motors | 110v, 1ph, 50/60Hz 220v, 1ph or 3ph, 50/60Hz | |
| Horsepower | 0.20hp, 1ph 0.34hp, 3ph | |
| Weight | 15lbs. 12 oz. (6.84kg) / 18 lbs (8.16kg) | |
| Standard Features | Hot Cloth Drill: Temperature Control | |
| Drill Tips Available | Standard: Taper Point Optional: Diamond Point, Open End Awl, Closed Awl, PTFE Coated | |
| Drill Diameters | English | Metric |
| 3/64 in | 1.19mm | |
| 5/64 in | 1.98mm | |
| 3/32 in | 2.38mm | |
| 1/8 in | 3.18mm | |
| 5/32 in | 3.97mm | |
| 3/16 in | 4.76mm | |
| 1/4 in | 6.35mm | |
| 5/16 in | 7.93mm | |
| 3/8 in | 9.52mm | |
| Drilling Capacity | English | Metric |
| 6 in | 15.2cm | |
| 8 in | 20.3cm | |
| 11.5 in | 29.2cm |
