HN-450 is the new type needle detector which is developed from former needle detectors.
All of switch are one-touch style (soft-touch) and convexity part on the surface are cleared away.
As indicator on control panel is indicating the position of broken needles, it is easy to find broken needles.
As detecting adjustment can be changed by 6 steps, it is easy to adjust in accordance with the sizes and kinds of accessories.
As HN-450 is made by special structure , it can be used on the steel table or operation table.
The permanent magnet which using in the detecting area can be used for a long time.

Technical Specifications

Model	HN-450
Detection method	Magnetic induction
Detection sensitivity	Max 110m height by steel needle (Ø0.6XL33)
Detection adjustment	6 step
Alarm method	Buzzer
Detection width	80mmX450mm
Power source	Single phase
Rated output	(appr.) 25W
Dimension	400(L) X 680(W) X 70(H)mm
Weight	(appr.) 11kg

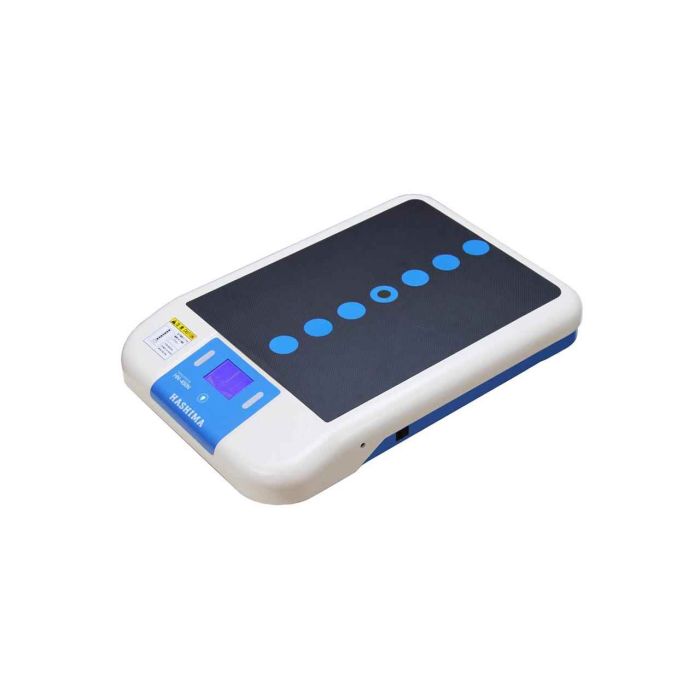

Hashima-KM HN-450, Table Top Needle Detection
