HN-2870C-HN-2780G-Twin-Head-Conveyor

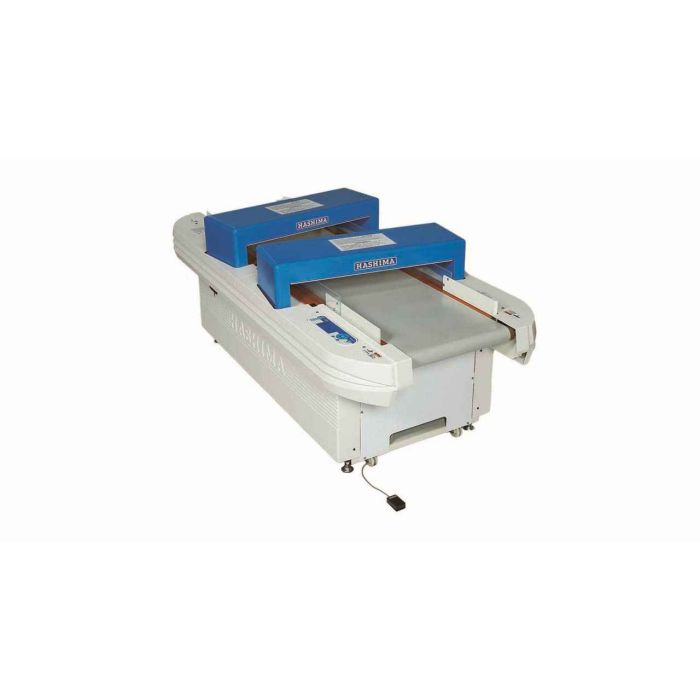

Hashima-KM HN-2870C / HN-2780G, Twin Head Conveyor Needle Detection
Twin head conveyor type needle detector
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
- Printer - It can print the inspection record and counter result.
- Product guider - It is an optional equipment on HN-870C, 2870C.
- Auto PreChecker - makes sensor checking more accurate and quicker. By using Precheck bar (specialized test block) & system, you do not need to check each coil one by one, the system checks sensors automatically.
- New global standard, detect f0.8mm ferrous ball by 120mm sensor height.
- Innovative sensor checking system by Auto PreChecker for saving your time.
- Ability for detection of foreign object is upgraded by new developed search coils and optimizing magnet position.
- Catch 0.8mm ferrous ball by 120mm height sensor
- Enlarged sensitivity equality
- Large sized LCD
- Needle position indication
- Foot switch and restart function
- Product counter
- Conveyor speed changing function
| Model | HN-2870C | HN-2780G |
| Detection method | Magnetic induction system | |
| Detection ability | Fe 0.8Ømm sphere or above | |
| Detection levels | 100 levels | |
| Detection width | 600mm | |
| Detection height | 120mm | 100mm |
| Alarm method | Buzzer and position lamp | |
| Belt speed | 40m / min | |
| Power source | 110V / 220V | |
| Rated output | 140W | |
| Dimensions | 2450(L) X 1080(W) X 930(H)mm | |
| Weight | 360kg | |
| Product guider | Option | Standard |
| Counter | Standard | |
