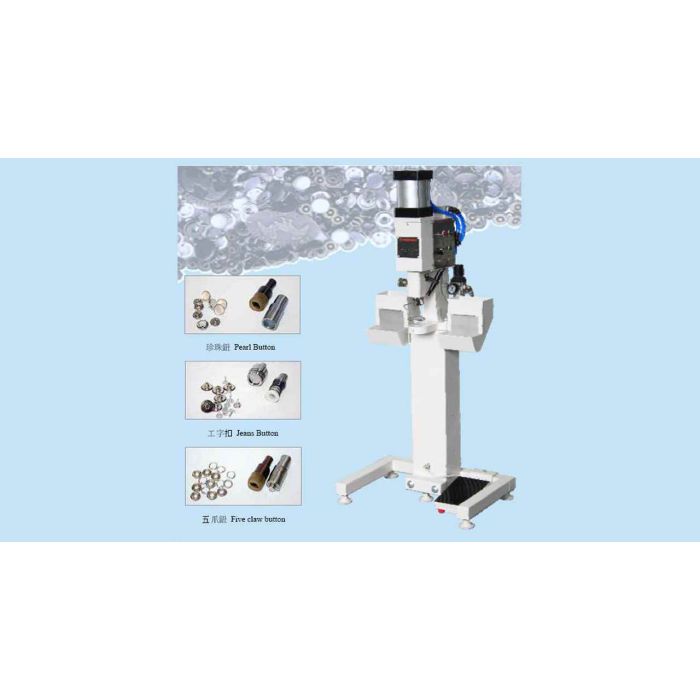

Ngaishing NS-47-U, Pneumatic Snap Fixing Machine With Light Marker & Safery Guard
₹125,000.00
Pneumatic Snap Fixing Machine with Light Marker & Safety Guard
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Hong Kong SAR China
Features
- For punching the buttons such as iron button, plastic button, pearl button and jeans button on garment or natural leather, plastic cloth, etc.
- Adopt pneumatic cylinder, strong punching power while remain soft for excellent effect
- Adjustable punching pressure for punching different kinds of buttons
- Can stay a short adjustable time at end stroke and then reset for a better finish
- Cross light marker ( C01-LM-001-8 ) for accurate positioning and easy to operate
- Special designed safety guard for protecting the operator more effectively
Technical Specifications
| Model | NS-47-U |
| Power Supply | 1PH/220V/50Hz |
| Total Power (kW) | 0.2 |
| Max. Compressed Air Pressure (kgf/cm²) | 7 |
| Compressed Air Consumption (L/min) | 30 |
| Max. Stroke (mm) | 50 |
| Machine size (mm) | 620x410x1315 |
