Dyeing-Machine-G1-HD-sampling-16-35-60

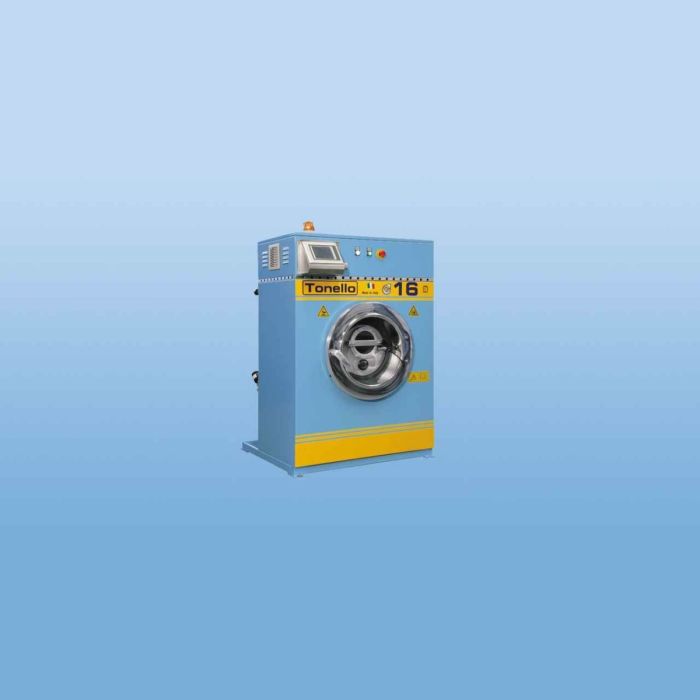

Tonello G1 HD (sampling) 16/35/60
"Equipped with a B&R processor & LCD TFT touch screen"
A machine particularly well-suited for sampling the various dyeing processes.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Features
- Tonello software works to optimize the machine’s functions and enables the programming of a larger number of automatic programmes.
- Using a USB stick, it’s possible to transfer recipes between the various machines and, thanks to an Ethernet network connection, the entire process can be controlled from a main computer in the office.
Datasheet
| Model | G1 16 HD | G1 35 HD | G1 60 HD |
| Cylinder volume (1) | 160 | 350 | 530 |
| Cylinder diameter (mm) | 710 | 900 | 1070 |
| Cylinder depth (mm) | 405 | 550 | 590 |
| Variable speed (rpm) | 3/450 | 3/450 | 3/450 |
| Installed power (kw) | 2,0 | 4,0 | 6,0 |
| Height (mm) | 1355 | 1625 | 1870 |
| Width (mm) | 1165 | 1410 | 1660 |
| Depth (mm) | 1055 | 1125 | 1280 |
