SKU
560-21

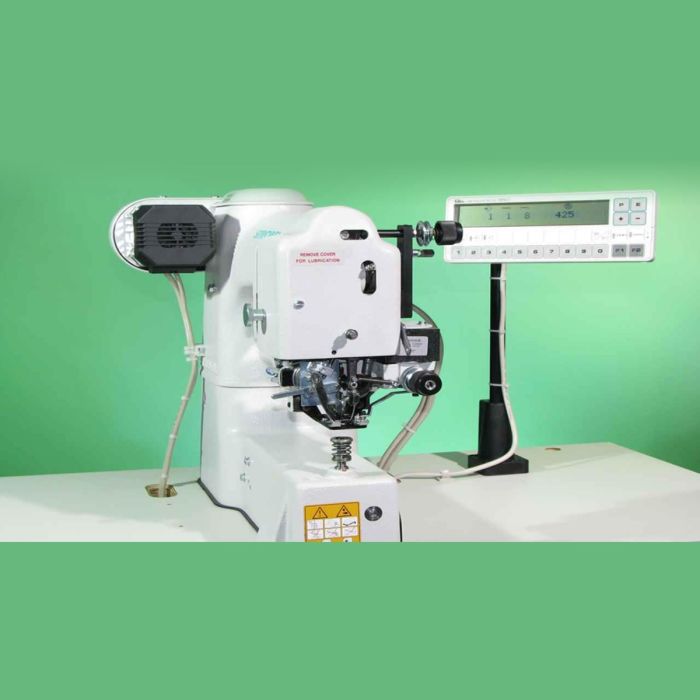

STORBEL 560-21 BLIND STITCH MACHINE
₹0.00
"Optional equipment is available for spot-tacking leather labels and lapel points of jackets"
Single thread blindstitch spot tacking machine
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Germany
Features
- For blind tacking of woven labels as well as turned-under hems or edges and turned-up trouser bottoms.
- Different stitch-depth-settings may be memorized and called up individually or in predetermined sequences for operations with different material thicknesses within quick succession (i.e. tacking the waistband lining).
- Optional equipment is available for spot-tacking leather labels and lapel points of jackets.
Technical Description
| Model | 560-21 | |
| Speed | mechanically admissible | 1800 min-1 |
| recommended rated speed | 1600 min-1 | |
| Needle plate opening | 8,0 mm 4,5 mm optional 6,0 mm optional 10,0 mm optional |
|
| Programmable | 99 programs 50 tacks each | |
| Needle system Needle size |
Strobel 1717 VRUE NM 90 - NM 110 |
|
| Round work-plate | optional Diameter 26mm / revolving 130 mm |
|
| removable work-plate | optional | |
| No. of stitches | 6,8,10,12,14 | |
| Min. motor power | 370 W | |
| Toothed belt pulley / machine | Z = 38 | |
| Toothed belt profile | HTD 5M-9 | |
| Stitch type | Single thread blind stitch spot tacking | |
| Recommended thread | PES No 120 - 300 | |
| Pneumatic connection | 6 bar | |
| Average air consumption | 110/h | |
| Required space | 0,6m X 1,06m | |
| Operating noise at 1200 min-1 nach DIN 45635-48-1 KL3 | LpAm 71 dB(A) | |
