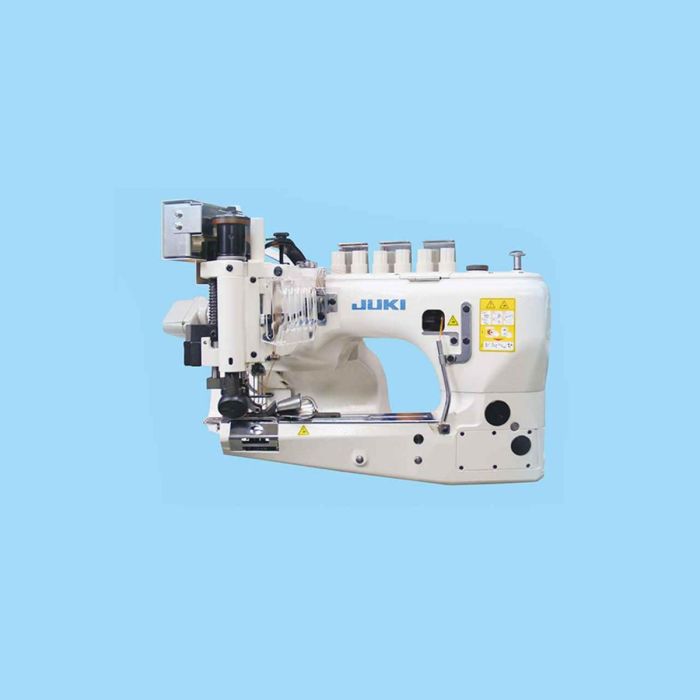

JUKI MS-3580 Series Chain Stitch Machine
"Feed-off-the-arm, 3-needle Double Chainstitch Machine"
The puller incorporates a one-way clutch mechanism which contributes to consistent feeding of the material
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
Features
- Smooth, efficient feeding of extra heavy weight 16-Ply, 14 oz denim for seaming inside seams
- Strong feeding mechanism of the puller
- Thread take-up device which helps produce even stitches with consistency
- The machine has been designed to achieve the best possible ease of threading
- The differential feed adjusting lever is located on the front face of the machine head
- The machine is best suited for lap seaming jeans, denim jackets, work uniforms, etc. constructed of heavy weight materials
Technical Specifications
| Technical Specifications - MS-3580 Series | |
| Stitch type | 3-needle, 6-thread, double chain stitch machine |
| Application | For medium – to heavy-weight materials: jeans, denim jackets, work uniforms, etc. |
| Max. sewing speed | 4,500 rpm |
| Normal sewing speed | 3,500 rpm |
| Needle gauge | 6.4mm, 7.2mm |
| Stitch length | 2.1mm ~ 3.6mm (standard 3.2mm) |
| Needle bar stroke | 33mm |
| Number of pieces of thread used | 6 |
| Lift of the presser foot | Max. 9mm (at the time of delivery 6.5mm) |
| Top feed roller width | 11.9mm |
| Feed adjusting method | Main feed: Slide-type stitch-length adjusting method |
| Lubrication | Automatic rotary-pump type oiling |
