SKU
218D-TP

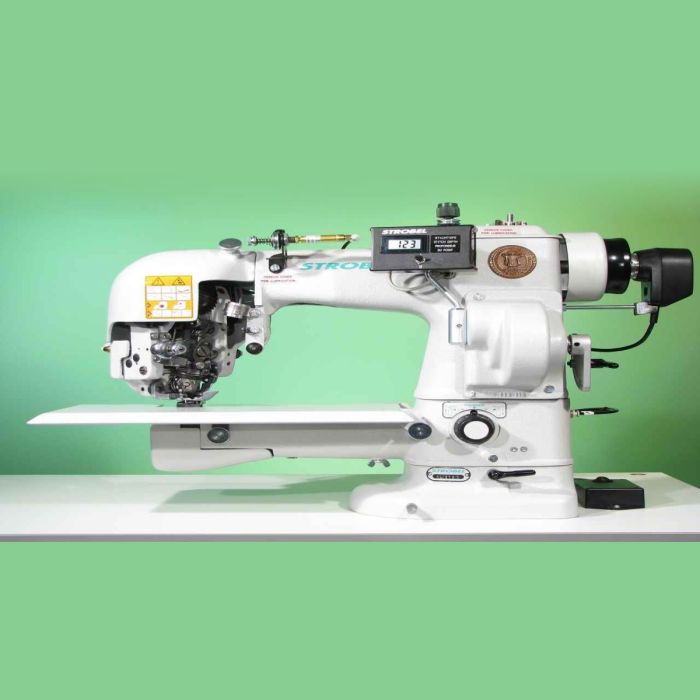

Strobel 218D-TP Blind stitch Machine
"The V-shaped blindstitch imitates tailor-made quality"
Two thread felling machine for under-collars
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Germany
Features
- For felling under-collars in jackets and coats with a highlight: Maximum production flexibility as the jacket may be reversed comfortably through the neck hole at the end of the production progress.
- The V-shaped blindstitch imitates tailor-made quality.
Technical Description
| Model | 218D-TP | |
| Speed | mechanically admissible | 1300 min-1 |
| recommended rated speed | 1300 min-1 | |
| Stitch length | 2,0 - 6,0 mm | |
| Needle plate opening | 7,0 mm | |
| Stitch depth regulation | digital | |
| Needle system Needle size |
Strobel 1717 VRUE 80 - 110 |
|
| Machine pulley diameter | dw 80 mm | |
| Min. motor power | 370 W | |
| V-belt profile | 10 X 6 mm | |
| Toothed belt pulley / machine | Z = 38 | |
| Toothed belt profile | HTD 5M-9 | |
| Stitch type | two thread blind lock stitch type 314 | |
| Recommended thread | PES No 120 - 300 | |
| Pneumatic connection | 6 bar | |
| Average air consumption | 0,31 I per stroke | |
| Required space | 0,6m X 1,1m | |
| Operating noise at 1200 min-1 nach DIN 45635-48-1 KL3 | LpAm 72 dB(A) | |
