SKU
VEB-100-6-1

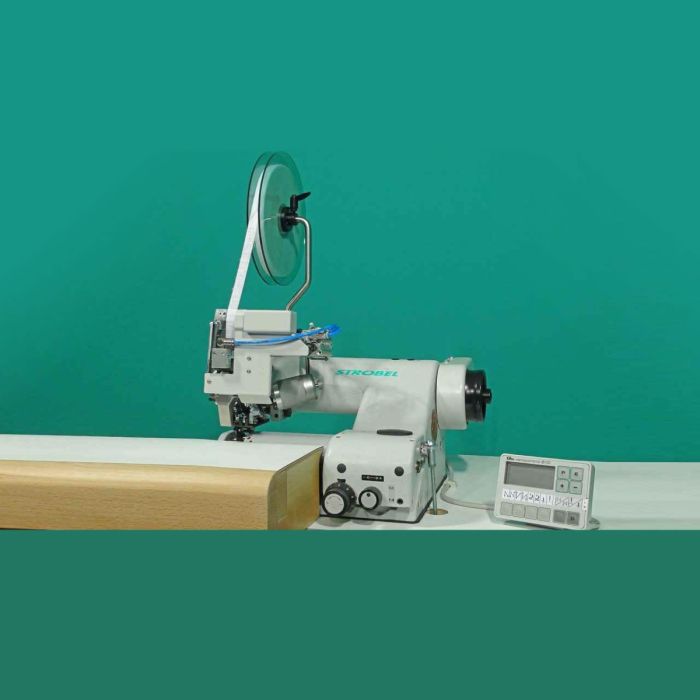

Storbel VEB 100-6 Blind Stitch Machine
"Single thread blind stitch machine for fusible coated tapes"
Fusible tapes coated on one side can be attached to jacket. Even with the VEB 100-6 we were able to implement our new modular design perfectly .The result is a sewing machine distinguishing itself by its flexibility of use.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Germany
- Fusible tapes coated on one side can be attached to jacket fronts or facing to be fused to the jacket
- In spite of a low work input this semi-automatic unit guarantees high quality combined with high efficiency (daily 850-1200 jackets)
- The machine is equipped with an automatic tape feeding device, tape cutter, thread trimmer and the option to predetermine the seam length
- The tape feeding device guarantees reliable tape feeding
- Tapes in any width between 16-25mm can be sewn since the feeding device is freely adjustable within the range and the seam is always in the center of the tape
- It is a swing-away tape feeding device, thus the machine can also be used for other operation
| Technical Description VEB 100-6 | |
| Speed Mechanically admissible Recommended speed | 3000/min 2200/min |
| Stitch length | 5-8 mm |
| Top feed | Saw Thoothing/Pyramid Thoothing optional |
| Spring loaded plunger | Optional |
| Needle plate opening | 6mm |
| Stitch depth regulation | Digital optional |
| Needle system Needle size | Strobel 1669,Strobel 4669 Nm 60-Nm 90 |
| Skip stitch with depth regulation | |
| Support arm | Diameter 55mm |
| Tape width | 15-25mm |
| Thread trimmer | Optional |
| Machine pulley diameter | 80mm |
| Min. motor power | 250 W |
| Stitch type | Single thread chain stitch |
| Required space | 0.5m x 1.1m |
