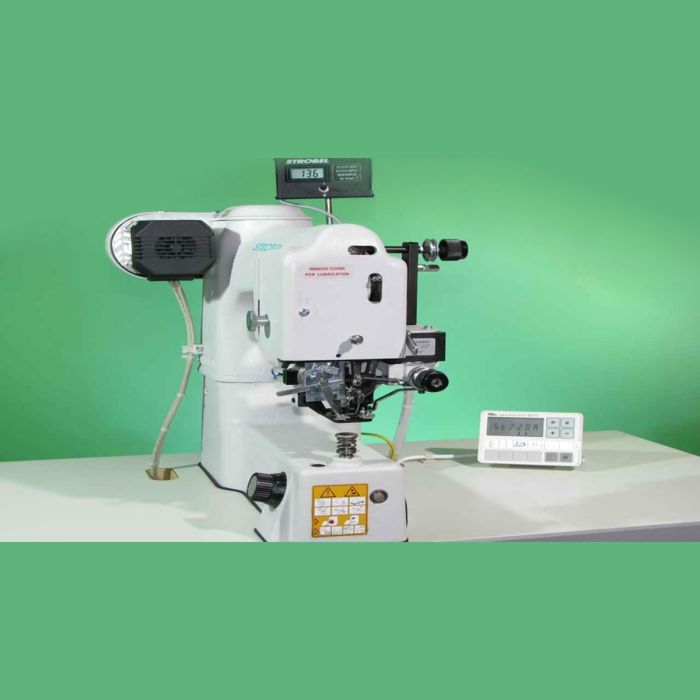

STORBEL 560-11 INDUSTRIAL BLIND STITCH MACHINE
"Do not leave any marks on the outside of the garment"
Single thread blindstitch spot tacking machine
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Germany
This spot tacking machine is used for several operations in the ladies' and men's outer wear industry: Woven labels can be tacked as well as turned-under hems or edges and turned-up trouser bottoms.
It's durable blind spot tacks do not leave any marks on the outside of the garment.
Due to optional equipment this machine can get converted to manufacture leather labels or to tack lapel points of jackets.
| Model | 560-11 | |
| Speed | mechanically admissible | 1800 min-1 |
| recommended rated speed | 1600 min-1 | |
| Stitches er tack | 6 - 14 | |
| Needle plate opening | 8,0 mm4,5 mm optional6,0 mm optional10,0 mm optional | |
| Stitch depth display digital | optional | |
| Needle systemNeedle size | Strobel 1717NM 90 - NM 110 | |
| Round work-late | Optionaldiameter-26mm / revolving-130mm | |
| Removable work-plate | Optional | |
| No. of stitches | 6,8,10,12,14 | |
| Min. motor power | 370 W | |
| Toothed belt pulley / machine | Z = 38 | |
| Toothed belt profile | HTD 5M-9 | |
| Stitch type | Single thread blind stitch spot tacking | |
| Recommended thread | PES No 120 - 300 | |
| Pneumatic connection | 6 bar | |
| Average air consumption | 110/h | |
| Required space | 0,6m X 1,06m | |
| Operating noise at 1200 min-1 nach DIN 45635-48-1 KL3 | LpAm 71 dB(A) | |
