SKU
45-223

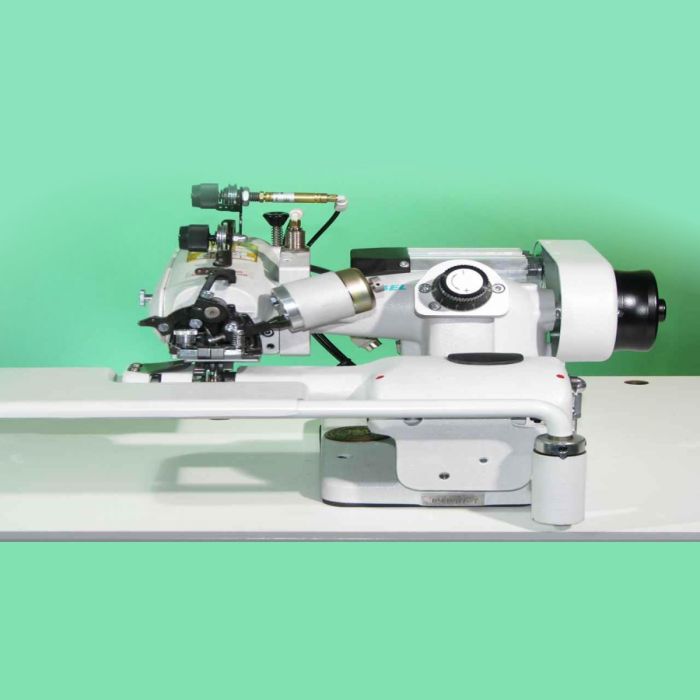

STORBEL 45-223 BLIND STITCH MACHINE
"Two alternating spring-loaded presser feet"
Single thread bluff edge blindstitch machine
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Germany
Features
- For demanding fabrics from fine to medium quality.
- The bluff edge blindstitch seam is hidden between the fabric layers as a loose cross stitch with alternating needle penetration between the hem's fabric layers.
- There are no marks over cross seams on either side of the garment due to two alternating spring-loaded presser feet.
Technical Description
| Model | 45-223 | |
| Speed | mechanically admissible | 2600 min-1 |
| recommended rated speed | 1600 min-1 | |
| Top feed | pyramid thoothing / saw thoothing optional | |
| Stitch length | 5,0 - 8,0 mm | |
| Needle plate opening | 9,5 mm | |
| Needle system Needle size |
Strobel 1669, 4669 Nm 60 - Nm 90 |
|
| Support arm | diameter 55 mm | |
| Thread trimmer | Optional | |
| Machine pulley diameter | dw 71 mm | |
| Min. motor power | 600 W | |
| V-belt profile | 10 X 6 mm | |
| Toothed belt pulley / machine | Z = 38 | |
| Toothed belt profile | HTD 5M-9 | |
| Stitch type | single thread chain stitch bluff stitch type 105 | |
| Recommended thread | PES No 120 - 300 | |
| Pneumatic connection | 6 bar | |
| Average air consumption | 95 I/h | |
| Required space | 0,5m X 1,1m | |
| Operating noise at 1200 min-1 nach DIN 45635-48-1 KL3 | LpAm 71 dB(A) | |
