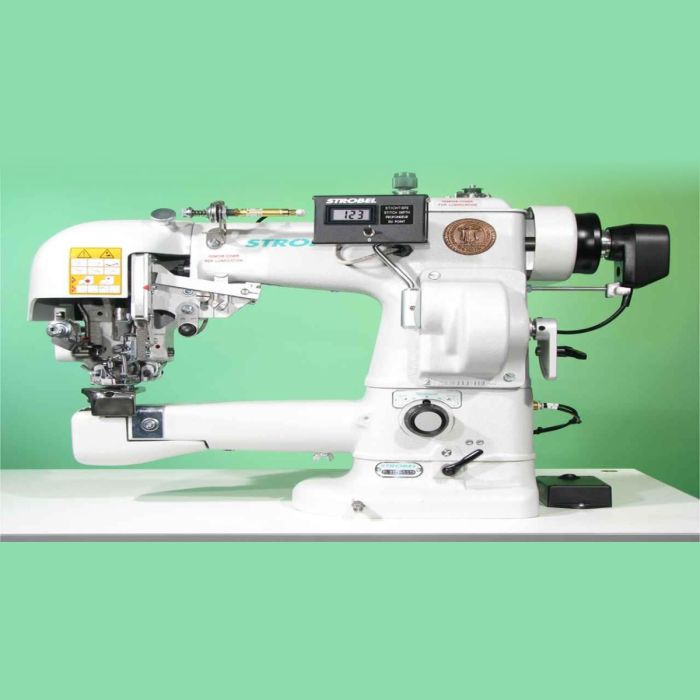

STORBEL 325-40D-TP BLIND STITCH MACHINE
"A perfectly soft seam is achieved"
Two thread felling machine for sleeve lining
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Germany
Features
- For blind stitching the lining into the armhole of jackets and coats.
- To obtain a high tailor-made quality also on the inside of a jacket, the upper part of the sleeve lining is attached from the left side (daily output 320-420 jackets).
- With an adjustable stitch length of up to 10 mm as well as the in-seam-adjustable upper feed a perfectly soft seam is achieved.
Technical Description
| Model | 325-40D-TP |
| Speed - mechanically admissible recommended rated speed |
1300 min-1 1300 min-1 |
| Stitch length | 2,0 - 10,0 mm |
| Needle plate opening | 11,0 mm |
| Stitch depth regulation | digital |
| Needle system Needle size |
Strobel 1717 VRUE 70 - 110 |
| Machine pulley diameter | dw 80 mm |
| Min. motor power | 370 W |
| V-belt profile | 10 X 6 mm |
| Toothed belt pulley / machine | Z = 38 |
| Toothed belt profile | HTD 5M-9 |
| Stitch type | two thread blind lock stitch type 317 |
| Recommended thread | PES No 120 - 300 |
| Pneumatic connection | 6 bar |
| Average air consumption | 0,31 I per stroke |
| Required space | 0,5m X 1,1m |
| Operating noise at 1200 min-1 nach DIN 45635-48-1 KL3 | LpAm 75 dB(A) |
