SKU
170-22D

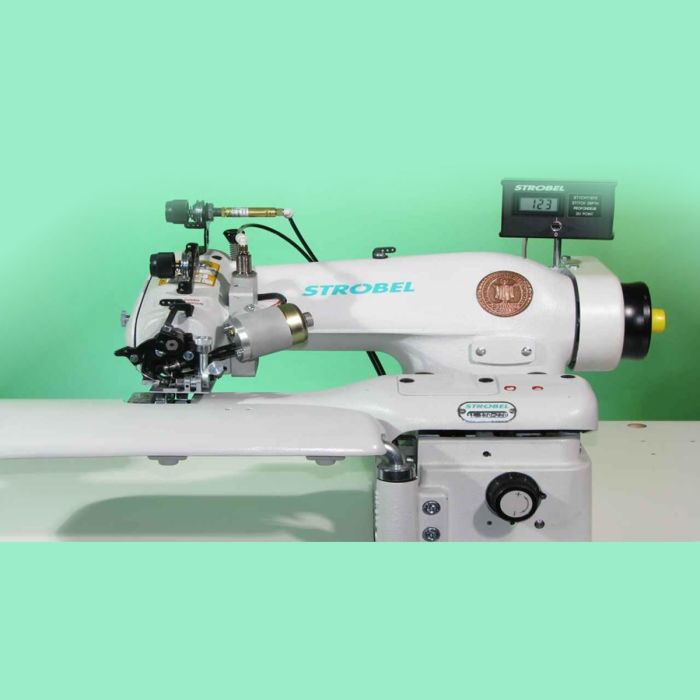

STORBEL 170-22 BLIND STITCH MACHINE
"Fast, durable and versatile"
Single thread blindstitch attaching machine
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Germany
Features
- Fast, durable and versatile and thus ideal for attaching linings, facings or pocket bags of coats and jackets or to hem trousers.
- Due to a spring-loaded presser foot the change of thickness. (i.e. at cross seams) are sewn without marks.
Technical Description
| Model | 170-22D | |
| Speed | mechanically admissible | 3500 min-1 |
| recommended rated speed | 3200 min-1 | |
| Top feed | pyramid thoothing / saw thoothing optional / coated | |
| Stitch length | 5,0 - 8,0 mm | |
| Needle plate opening | 6,0 mm 4,5 mm optional 7,0 mm optional 8,0 mm optional |
|
| Spring loaded plunger | plunger variation optional | |
| Needle system Needle size |
Strobel 1669, 4669 Nm 60 - Nm 90 |
|
| Stitch depth regulation | digital optional | |
| Support arm | diameter 60 mm | |
| Thread trimmer | Optional | |
| Machine pulley diameter | dw 80 mm | |
| Min. motor power | 400 W | |
| V-belt profile | 10 X 6 mm | |
| Toothed belt profile | HTD 5M-9 | |
| Toothed belt pulley / machine | Z = 38 | |
| Stitch type | single thread chain stitch | |
| Recommended thread | PES No 120 - 300 | |
| Pneumatic connection | 6 bar | |
| Average air consumption | 95 I/h | |
| Required space | 0,5m X 1,1m | |
| Operating noise at 1200 min-1 nach DIN 45635-48-1 KL3 | LpAm 71 dB(A) | |
