BK-17

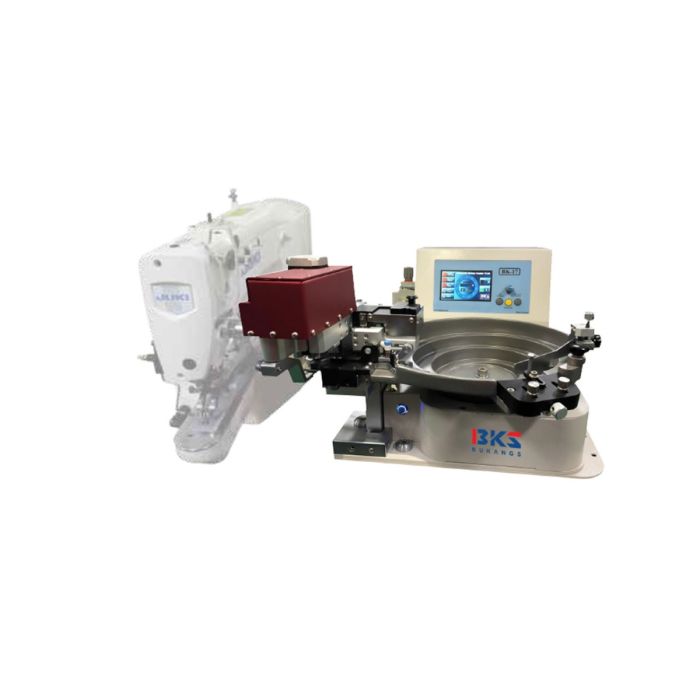

BUTTON FEEDER
"A button feeder that blends in with its perfection and accuracy"
Industrial Sewing Machine Attachment. Button Feeder Attachment.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
Features
- One body type loosening clamp
- Easy Button measure
- Easy Micro Adjustment
- Two times cutting
- Cyclic program 5
- Point button Can be programmed to load the other size button by hand
- Supply button: Automatic button supply in absence of no button in work clamp
- X, Y adjustment: Easy to set the X & Y axis for transfer pin setting to needle
Technical Specifications
| Model | BK-17 |
| Feeding Method | Electronic Mechanical & Pneumatic systems. |
| Feeding time Electric Spec. | 0.5 ~ 0.6 Seconds 50/60 HzDual Cycle 100V/240V Dual Voltage SMPS Controlled |
| Button Type Button Hole |
2 & 4 Holes- Standard 3 Holes- Optional |
| Button Dia Button Tickness |
8~30 mm** 1.0~8.0 mm** |
