Bias-cutter-CMB-1800

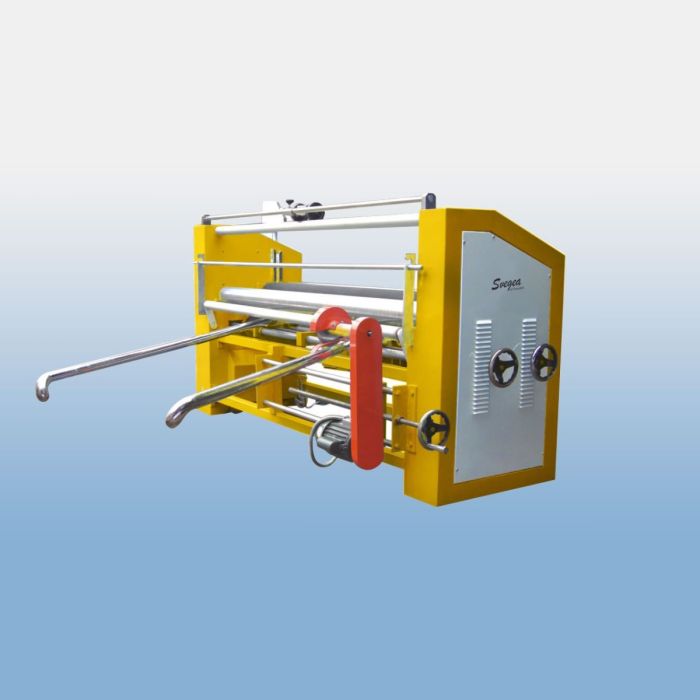

Svegea Bias cutter CMB 1800 Bias Slitting & Strip Cutting
"Bias Slitting made simple"
Economically priced machine for the best performance available. Svegea is a Swedish product designed in a user friendly manner but built with German robustness.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Features
- 1800 mm width capacity.
- Bias bars adjustable between 300-900 mm.
- Bias angle adjustable between 30-60 degrees.
- Machine speed infinitely variable.
- Meter counter. Economically priced
Technical Specifications
| TECHNICAL DATA Bias Cutter CMB 1800 | |
| Maximal operation width | 1800 mm (70 7/8″) |
| Maximum roll diameter | 400 mm (15 3/4″) |
| Diameter of fabric shaft | 37.5 mm (1 1/2″) |
| Paper core inside diameter | 38-40 mm (1 1/2 – 1 4/7″) |
| Bias angle | 30-60 degrees |
| Air pressure | 4-6 bar min |
Motors |
|
| Motor power | 0,75 kW |
| Power | 380 V, 3-phase, 50 cycles |
| Machine dimensions | |
| Length / Width / Height | 235 / 105 / 130 cm (92 / 41 / 51″) |
| Net weight | 400 kg (880 lbs) |
