SKU
NS-1121

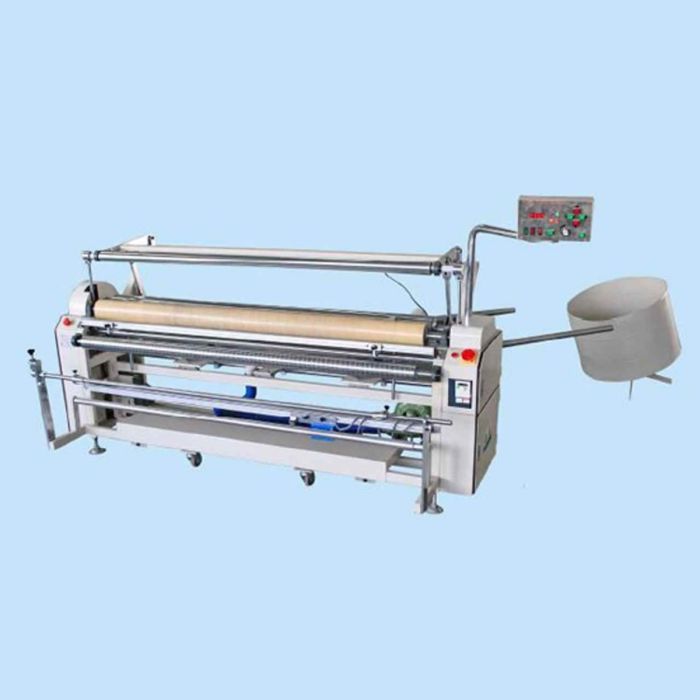

Ngaishing NS-1121 Bias Slitting & Strip Cutting
₹1,491,600.00
"Suitable for vertical and bias cloth winding"
Bias and Vertical Cloth Winding Machine with Edge Control
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Hong Kong SAR China
Features
- Suitable for vertical and bias cloth winding
- Maximum winding diameter is 9"
- Adjustable winding speed , maximum winding speed is 130 meters per minute
- All rolling shafts are supported by bearing
- Adjustable winding tension
- Equipped with edge-control system for saving fabric and high-quality winding
Technical Specifications
| Model | NS-1121-72 | NS-1122-90 |
| Power Supply | 1PH / 220W50Hz | 1PH / 220W50Hz |
| Total Power (kw) | 13 | 13 |
| Max. fabric width (inch) | 9x72 | 9x90 |
| Max. winding speed (m/min) | 130 | 130 |
| Net weight (kg) | 500 | 520 |
| Machine size (mm) | 2340x970x1530 | 2650x970x1530 |
