Trolley Bus bar for Cutting Tables with accessories
EAE Industrial Trolley Bus Bar
- The power is taken from the conductors through the brushes in the trolleys, which travel with the moving machinery, to supply continuous power.
- This eliminates the possibility of accidents and malfunctions associated with moving cables.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Turkey

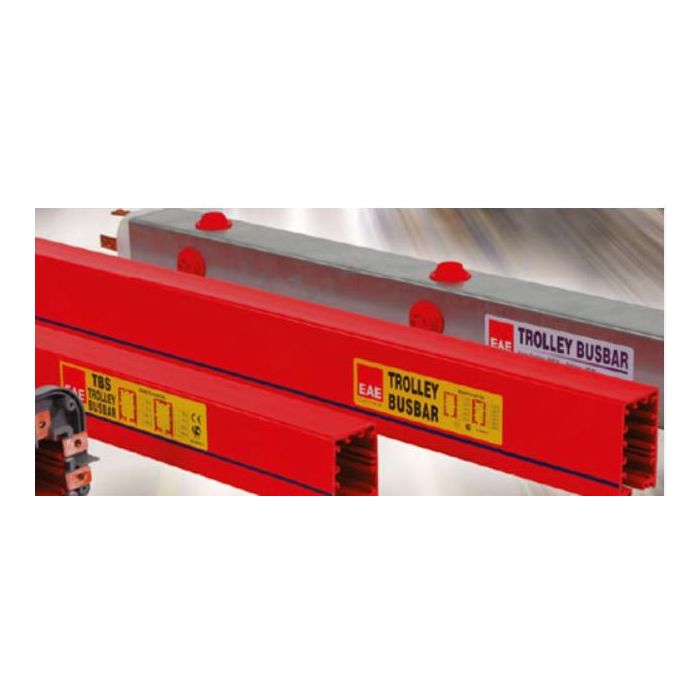

E-Line TB and E-Line URC series Trolley Busbar are designed to power mobile machinery. The current collector car, which provides electrical transfer from the trolley busbar, is mechanically connected to the mobile system and moves along with the system to provide uninterrupted electrical transfer.
It consists of insulated busbars and a moving current collector car. Problems encountered in energy distribution are eliminated with the use of suspended and reeled cables in conventional systems.
- The body in our movable busbar systems has high impact resistance and non-flammability.
- The standard body length of our busbar series is 4 m.
- 40A / 63A / 75A / 105A/ 130A current ratings
- Standard 4 or 5 conductors(40A - 130A)
- Continues copper conductors
- C-PVC housing
- 4m standard length (special length size available)
