SKU
VEB-100-7

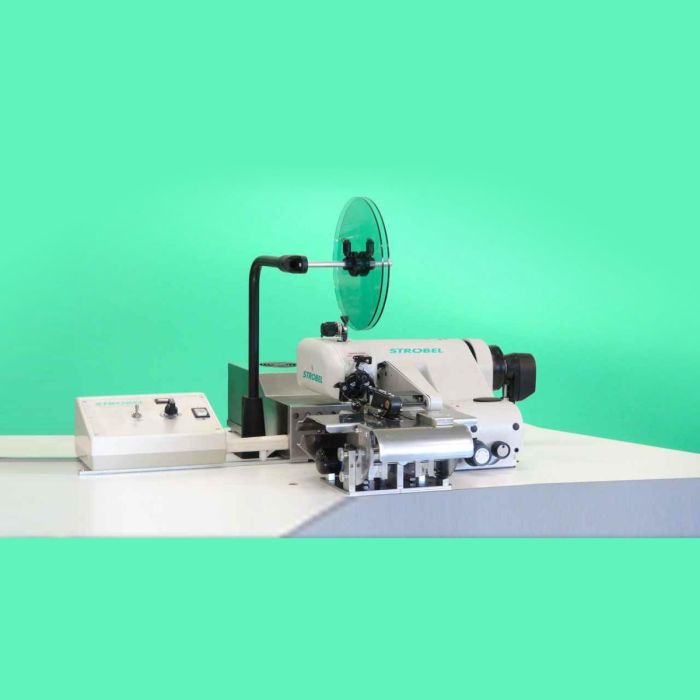

STORBEL VEB 100-7 BLIND STITCH MACHINE
"Single thread blind stitch machine for belt loops with fusing"
Fabric strips are cut, folded into belt loops, blind stitched and pressed in a fully automatic process.
Decades of experience in the manufacturing of belt loop work stations led to our new VEB 100-7 with better efficiency, silence and ease of maintenance than ever before.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Germany
Features
- Fabric strips are cut, folded into belt loops, blind stitched and pressed in a fully automatic process
- The trimming station with an entirely new design uses extremely durable stroke knifes thus ensuring adjustment and maintenance
- A high variety of belt loops widths is available by means of different folders which are very easy to exchange
Technical Description
| Technical Specifications VEB 100-7 | |
| Speed Mechanically admissible Recommended speed |
3000/min 2200/min |
| Stitch length | 6 mm |
| Top feed | Saw thoothing/Pyramid thoothing optional |
| Spring loaded plunger | Optional |
| Needle plate opening | 8mm |
| Stitch depth regulation | Digital optional |
| Needle system Needle size |
Strobel 1669,Strobel 4669 Nm 60-Nm 90 |
| Beltloop width | 8-13mm |
| Adjustable cutting device | 24-43mm |
| Machine pulley diameter | 80mm |
| Min. motor power | 250 W |
| Stitch type | Single thread chain stitch |
| Required space | 0.7m x 1.1m |
