SKU
VEB-100-5

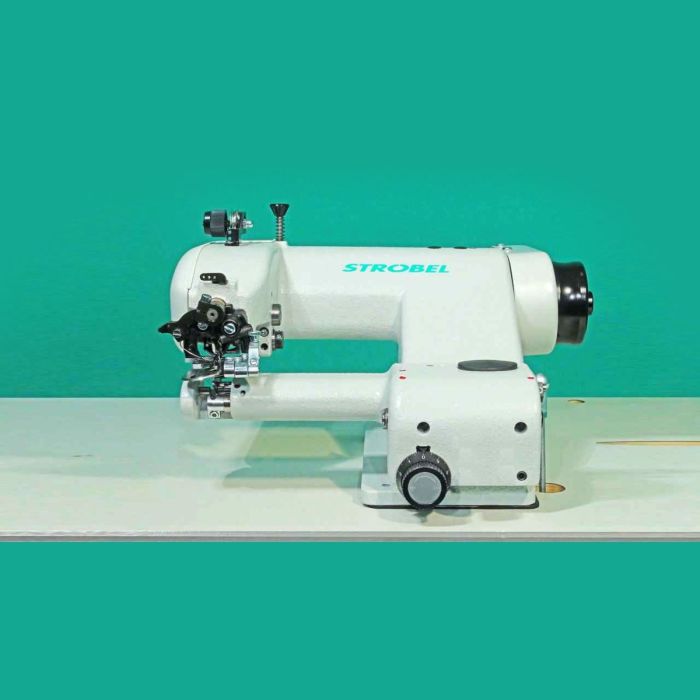

STORBEL VEB 100-5 BLIND STITCH MACHINE
"Single thread blind stitch book seam machine"
The seam has the elegant look of a tailor made hand stitch seam
Our solution for visible seams in half lined jackets. Functional, aesthetical and economical
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Germany
Features
- Functional : No sewing solution for covered edges with a less bulky appearance
- Aesthetical : The seam has the elegant look of a tailor made hand stitch seam
- Economical : The trimmed edge is over locked and sewn in one operation
By using different folders and many adjustment options the seam can be designed to your individual requirements
Technical Specifications
| Technical Descriptions - VEB 100-5 | |
| Speed Mechanically admissible Recommended speed |
3000/min 1800/min |
| Stitch length | 5-8 mm |
| Top feed | Pyramid thoothing |
| Fixed plunger | |
| Needle plate opening | 7mm |
| Stitch depth regulation | Digital optional |
| Needle system Needle size |
Strobel 1669,Strobel 4669 Nm 60-Nm 90 |
| Support arm | Diameter 55mm |
| Hemmer | Hem Width 6mm 8mm+10mm 6mm 6mm,8mm+10mm |
| Thread trimmer | optional |
| Machine pulley diameter | 80mm |
| Min. motor power | 250 W |
| Stitch type | Single thread chain stitch |
| Required space | 0.5m x 1.1m |
