SKU
VEB-100-3

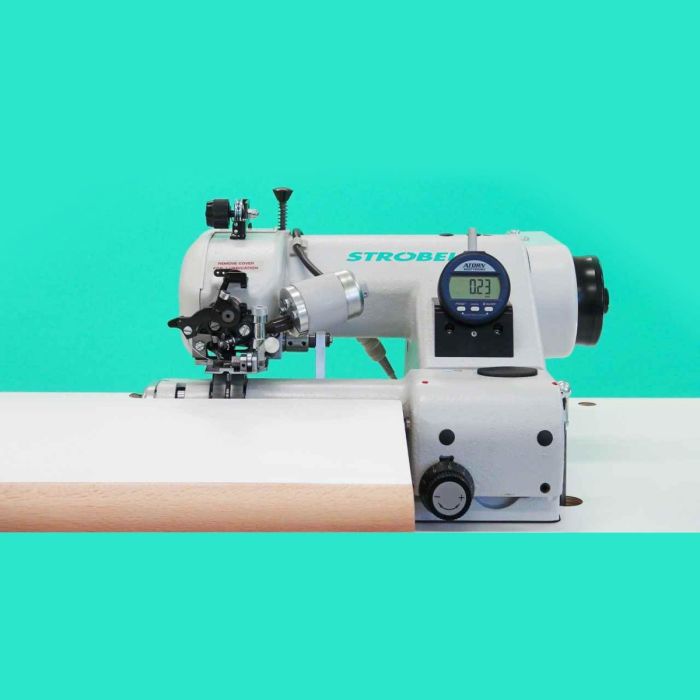

STORBEL VEB 100-3 BLIND STITCH MACHINE
"Single thread felling machine for waistband linings"
The new plunger system allows to compensate the change of thickness free of marks
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Germany
Features
- This new high-performance blindstitch machine with a newly designed plunger and belt feed is made for felling the waitband lining
- The seam can be at the edge or on the top of the waistband seam
- The bottom belt feed guarantees a perfect feeding, even with heavy fabrics
- The new plunger system allows to compensate the change of thickness free of marks(i.e attached belt loops, cross seams, waist pleats, pocket bags)
Technical Specifications
| Technical Specifications - VEB 100-3 | |
| Speed Mechanically admissible Recommended speed |
3000/min 2200/min |
| Stitch length | 5-8 mm |
| Top feed | Pyramid thoothing Beltfeed |
| Spring loaded plunger | |
| Needle plate opening | 7mm 8mm optional |
| Stitch depth regulation | Digital optional |
| Needle system Needle size |
Strobel 1669,Strobel 4669 Nm 60-Nm 90 |
| Skip stitch with depth regulation | 1:2 |
| Support arm | Diameter 55mm |
| Tape width | 15-25mm |
| Thread trimmer | Optional |
| Machine pulley diameter | 80mm |
| Min. motor power | 250 W |
| Stitch type | Single thread chain stitch |
| Required space | 0.5m x 1.1m |
