SKU
HSP-5400

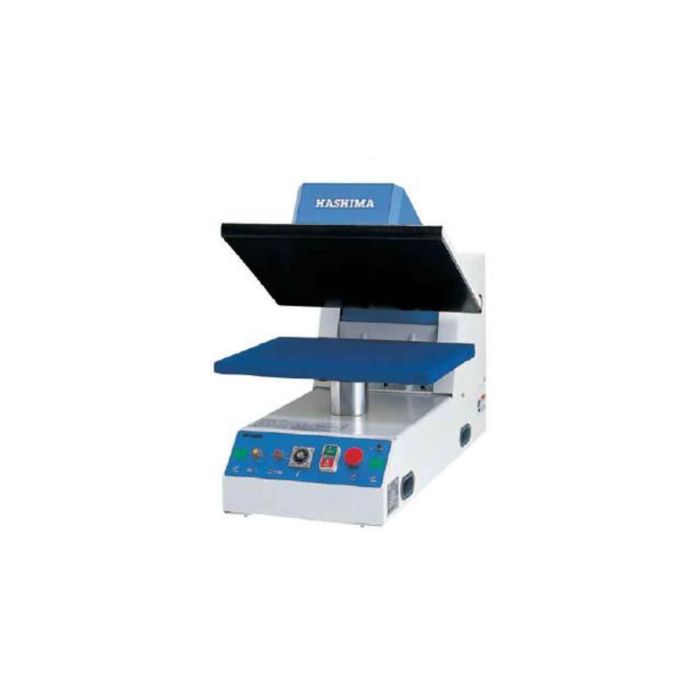

Hashima-KM HSP-5400 Flat Type Sublimation
"Easy installation and simple maintenance"
Heat transfer press machine
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
Features
- This heat transfer press machine is driven by motor , it doesn't require air system. (Easy installation and simple maintenance)
- Lower pressure plate is set on plinth and can be changed easily.
- The electronic thermostat and solid state relay minimize thermal difference.
- The upper pressure plate adopts an anti-static electricity Teflon sheet, so that it can be cleaned easily.
Technical Specifications
| Model | HSP-5400 |
| Power supply | Single phase |
| Rated output | 1.1 KW |
| Max. Pressure | 300gs / cm2 |
| Pressing method | Motor |
| Max. temperature | 230°C |
| Dimensions of plate | 500mm x 400mm 20" x 16" |
| Dimensions | (W) 517mm 20.6" (D) 930mm 37.2" (H) 495mm 19.8" |
| Weight | 106Kgs, 233bl |
