SKU
E-Line-KM

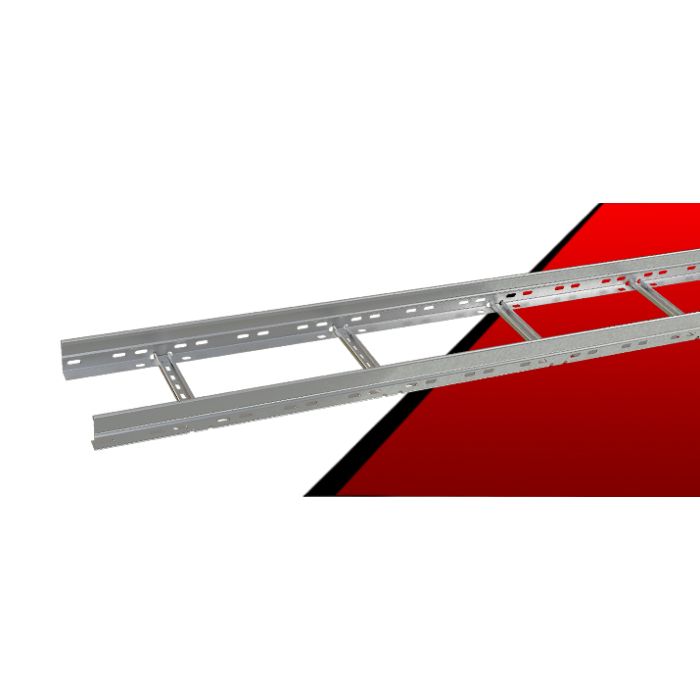

EAE Industrial E-Line KM Cable Ladder
"E-Line KM pre-galvanized / hot-dip foldable cable ladders are featured with one-way folding"
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Turkey
E-Line KM pre-galvanized / hot-dip foldable cable ladders are featured with one-way folding. Thanks to this, they cover much less space than the E-Line KC series cable ladders. It reduces shipment and storage costs.
Technical Features
Height is 40-50-60-75-100-125 and 150mm and the width can be up to 100-200-300-400-500-600mm.
KM Cable Ladder
- Custom 700/800/900/1000 wide.
- 3000 mm standard lengths (6000 mm lengths are optional)
- It is manufactured to TS EN 10143 - TS EN 10346 as pre galvanized options
- The strength (loading capacity) of the Cable Ladders is augmented by means of the shape of the lateral walls.
- The Cable Ladder can be utilized in horizontal rack applications on lateral walls, providing a cost advantage.
- Equal traverse structure with 300 mm intervals
- More cable space than conventional ladders with an unique traverse height system
- Fire resistance certification (E30-E60-E90)
