Air-Volution-D3
D3
"HVLS deliver a cost-effective climate control solution by creating a cooling effect for Medium to Large spaces"
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Italy
For Medium to Large Spaces

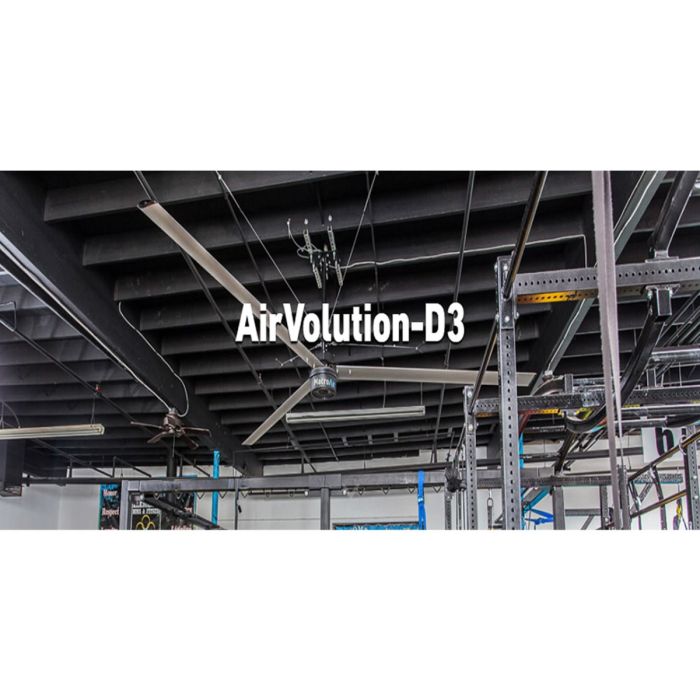

Simplicity is key in the AVD3 industrial ceiling fan. The three-blade design reduces weight, friction, and raw materials, which in turn minimizes the strain on the building, your energy consumption, and your budget. But can three blades do the job? Yes! Just like a wind turbine, we designed the AVD3 to be the optimal balance between weight, materials, and efficiency.
Features:
- Maintenance-free direct-drive motor
- On-board electronics eliminates control panel
- 50,000 hour (24 year) operating warranty
- Costs only $1.00 a day to run
- Digital remote for fan control and troubleshooting
- IP65 wash-down rated to withstand water and dust exposure
Technical Specifications
| Sizes | 10 - 24 feet |
| Weight | 129 - 162 pounds |
| Horsepower | 1.05 horsepower |
| Airfoils | Anodized Extruded Aluminum |
| Safety | Safety Cable, Fixed Angle Mount, Guy Wires |
| Low Voltage | Single or Three Phase, 208-240 VAC +/- 5% (Model 430), Single or Three Phase, 110-277 VAC +/- 5% (Model 450) |
| High Voltage | Three Phase, 480 VAC +/- 5% (Model 430), Single or Three Phase, 380-600 VAC +/- 5% (Model 450) |
| Certifications | UL 507, CSA-C22.2 No. 113 |
