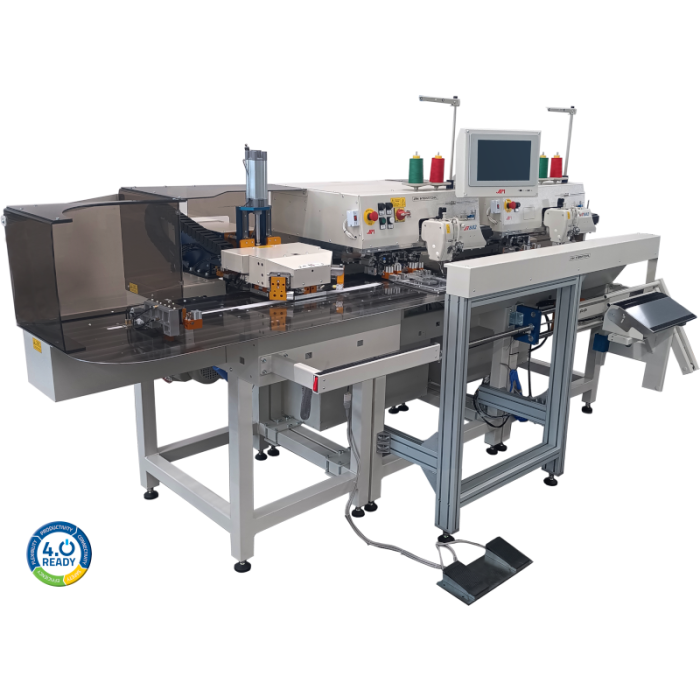

JAM JT882M Dual-Head Automatic Pocket Setter
₹0.00
Sewing Head
Dual JAM INTERNATIONAL lockstitch heads with direct drive motors.
Large-capacity rotary hooks with thread trimmers.
Electric axis enables processing of wider-than-average garment pieces.
Programmable Electronic Thread Tension
Electronically controlled and adjustable via touch screen.
Different tensions programmable within a single sewing cycle.
Thread Extension / Thread Lock
Adjustable residual thread length after trimming.
Guarantees smooth seam starts and high-quality finishes.
5-Movement Folding Group
Supports non-standard pocket shapes (square, rounded corners, etc.).
Cold folding system ensures precision on stretch, super-stretch, and knitwear fabrics.
Pocket Jig
Pneumatic release for quick jig changes.
Patented system enables users to create templates independently with basic tools.
Touch Screen Interface (12")
Create sewing programs by inputting pocket dimensions or importing DXF profiles.
Upload programs via USB (compatible with BDCAD software).
On-screen editing, self-diagnostics, troubleshooting, and remote updates.
Production statistics viewable locally or remotely.
Multi-level access: Operator, Technical, and Administrator modes.
Additional Uses
Ornamental stitching, double color stitching, and stitching outside pocket profiles.
Application of small or coin pockets on pocket facings.
Semi-automatic application of pre-ironed pockets.
Pocket setting on very small pieces (optional stacker).
Extra-long items (smocks, scrub suits, etc.) supported due to extended sewing space.
Optional Devices
Panel Fullness Device – adjusts fullness at pocket top.
Bartack Reinforce Device – applies reinforcement fabric at bartack areas.
Label Application Device – patented system for label placement on pockets.
Laser Marker Lights – guide precise pocket positioning.
Automatic Bobbin Changer – 8-bobbin magazine for continuous production.
BDCAD Software – PC software for sewing program creation/editing.
BDCAD Pro Software – advanced PC software for template development.
See all SpecsManufacturer Warranty
12 Month manufacturer warranty
Distributor Warranty
3 Month Distributer Warranty
Designed in Italy
The JT882M is a high-performance programmable area pocket setter designed for jeans and similar garments, equipped with a new folding unit (up to 270×270 mm) and an automatic stacker. With two JAM INTERNATIONAL lockstitch sewing heads powered by direct motors, large-capacity rotary hooks, and integrated thread trimmers, the JT882M delivers unmatched productivity and flexibility. Its 12” touch screen control panel, electronic thread tension system, quick-change pocket jigs, and advanced folding technology allow precise stitching on both standard and non-standard pocket shapes—even on challenging fabrics such as stretch and knitwear. Designed for versatility, it supports ornamental and multi-color stitching, pocket applications on large or small items, and semi-automatic pre-ironed operations.
Technical Specifications
| Sewing head | Lockstitch |
| Control unit | 12″ touch screen |
| Feeding system | Synchronized intermittent feed |
| Sewing area | X = 270 mm · Y = 275 mm |
| Folding area | X = 270 mm · Y = 270 mm |
| Sewing speed | Up to 4000 rpm |
| Stitch length | 0.05–12.70 mm |
| Average production | 360–400 pockets/hour |
| Power source | 220 Vac – 50/60 Hz |
| Electric consumption | Max 2.5 kW |
| Air source | 6 bar |
| Air consumption | Max 3.6 l/cycle |
| Dimensions & weight | 350×200×180(H) cm — 850 kg |
