SKU
JAM-JT263HR

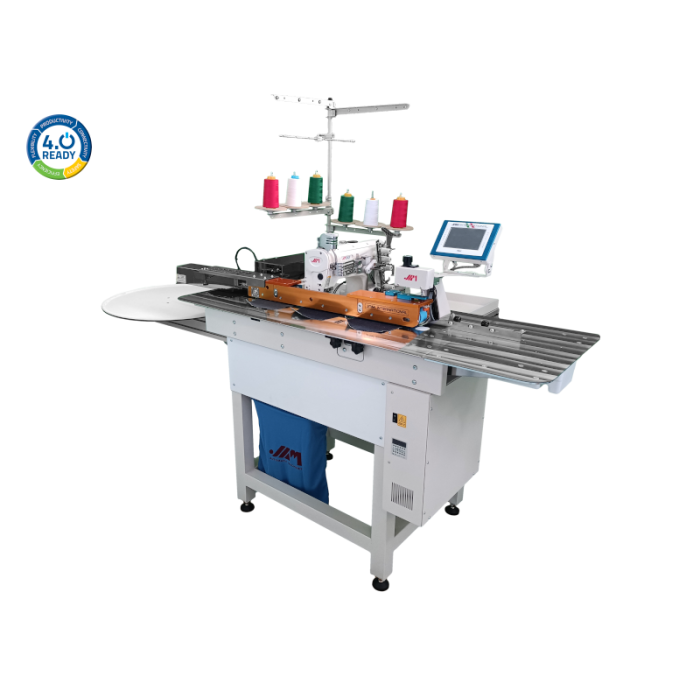

JAM JT263HR 3-Needle Chainstitch Pocket Hemmer with Adjustable Folder
₹0.00
Sewing & Material Handling
Three-needle KANSAI chain stitch sewing head with servo direct drive motor.
Intermittent conveyor belt synchronized with feed dog, powered by electronic motor.
Adjustable folder for single and double hems; hemming height adjustable between 6–27 mm.
Automation & Detection
Photo sensors for fabric detection.
Thread break detection sensors for uninterrupted production.
Automatic thread trimmer with vacuum system for thread waste disposal.
Rotating stacker ensures neat stacking and collection of pockets.
Control & Usability
JAM touch screen control panel for simplified operation and adjustments.
Advanced electronic control unit developed by JAM.
Software updates via USB memory.
Sewing head pull-back system and conveyor belt lifting system for easier threading and maintenance.
Versatility
Performs hemming on a wide variety of fabrics, from rigid denim to flexible stretch materials.
Quick, tool-free adjustments without replacing devices.
Optional Device
Automatic Pocket Loader
Capacity: up to 400 pockets.
Supports pocket sizes up to 270×270 mm.
See all SpecsManufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month Distributer Warranty
Designed in Italy
The JT263HR is an advanced automatic pocket hemming machine designed specifically for jeans and similar garments. Powered by a three-needle KANSAI chain stitch sewing head with a servo direct drive motor, it delivers exceptional stitch quality and durability. Its electronically driven intermittent conveyor belt, combined with advanced fabric/photo sensors and thread break detection, ensures consistent feeding and minimal downtime. With an adjustable folder for both single and double hems (6–27 mm), intuitive JAM touch screen controls, and a rotating stacker for efficient pocket collection, the JT263HR provides high productivity and reliability across a wide range of fabrics—from heavy denim to stretch materials.
Technical Specifications
| Sewing head | KANSAI 3-needle chain stitch, direct drive motor |
| Control unit | JAM PLC + touch screen |
| Feeding system | Conveyor belt synchronized with the feed dog |
| Sewing speed | Up to 3800 rpm |
| Stitch length | 0.05–5.0 mm |
| Average production | 1500–2000 pockets/hour |
| Power source | 220 Vac – 50/60 Hz |
| Electric consumption | Max 1.5 kW |
| Air source | 6 bar |
| Air consumption | Max 1.5 l/cycle |
| Dimensions & weight | 214×100×171(H) cm — 183 kg |
