SKU
JAM-JT115GB
JAM JT115GB Cylinder Arm Programmable Decorative Stitch Machine
₹0.00
Sewing & Embroidery Performance
Cylinder arm design for decorative stitching and one-color embroidery on trouser legs.
Lockstitch sewing head with servo direct drive motor.
Double-capacity shuttle hook for longer operation with fewer bobbin changes.
Integrated thread trimmer for clean finishing.
Programmable Control
X and Y axis movement powered by stepper motors for precise stitch positioning.
Easy-to-use programmer for creating and modifying sewing programs.
Ability to store multiple stitching cycles for flexible production requirements.
Optional Device
Label Application Device – allows integration of label attachment with the decorative stitching cycle.
See all SpecsManufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month Distributer Warranty
Designed in Italy

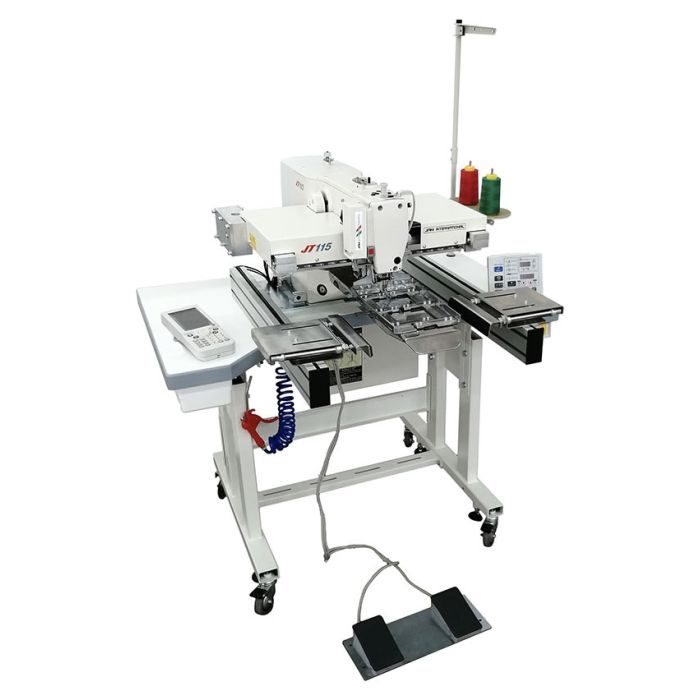

The JT115GB is a specialized cylinder arm sewing unit with a programmable area, designed for decorative stitching and single-color embroidery on finished trouser legs. Its lockstitch sewing head with servo direct drive motor, double-capacity shuttle hook, and automatic thread trimmer ensures high productivity with consistent stitch quality. Driven by X and Y axis stepper motors, the unit allows flexible pattern creation and precise embroidery placement. With intuitive programming capabilities, operators can easily adjust or store multiple stitching cycles, making it an ideal solution for adding ornamental value to garments.
Technical Specifications
| Sewing head | Lockstitch shuttle hook |
| Control unit | 311G |
| Feeding system | Synchronized intermittent feed |
| Sewing area | X = 320 mm · Y = 210 mm |
| Sewing speed | Up to 2700 rpm |
| Stitch length | 0.05–12.70 mm |
| Power source | 220 Vac – 50/60 Hz |
| Electric consumption | Max 1 kW |
| Air source | 6 bar |
| Air consumption | Max 0.8 l/cycle |
| Dimensions & weight | 110×98×176(H) cm — 158 kg |
