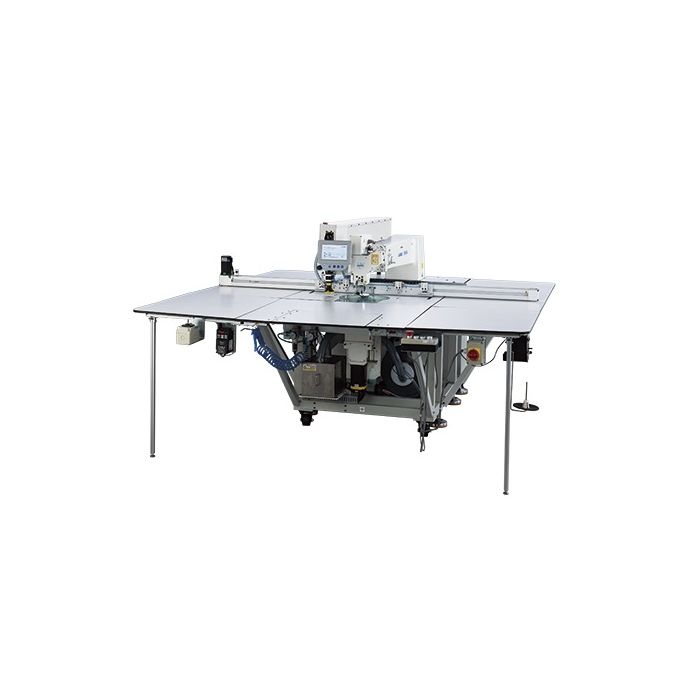

JUKI PS-900 Pattern Seamer with 360° Needle Bar Rotation

The PS-900 Needle Bar Rotation 360° Pattern Seamer is designed to transform sewing productivity through precision automation, flexibility, and stable quality. Offering a generous 1,300 mm (X) × 900 mm (Y) sewing area, it supports large, complex patterns and multi-directional stitching for apparel, technical textiles, automotive, and industrial products. At its core, JUKI’s unique needle-bar turning mechanism and synchronized control of the needle bar, hook, and feed mechanisms ensure uniform stitch quality in every sewing direction. During continuous circumference or dynamic pattern sewing, the machine automatically detects sewing direction and maintains optimal conditions, resulting in consistent, high-quality seams regardless of motion path. The dry-head design achieves speeds up to 3,000 sti/min, minimizing oil stains and maintenance while supporting a broad range of fabrics. A programmable intermediate presser allows stepless adjustment of its lower dead point during sewing—particularly effective on multi-layer sections—improving fabric stability and reducing issues such as skipped stitches and thread breakage. For smart factory integration, the PS-900 supports pattern identification via RFID/Barcode, enabling automatic program recall and faster job changes. The operation panel accepts widely used DXF, AI, PLT, and DST data formats and can store up to 999 sewing patterns, allowing immediate use of existing design data with included editing software. Precision thread control is enhanced through active tension for 360° needle bar rotation, enabling stitch-by-stitch adjustment based on fabric thickness and sewing direction. The use of a lightweight plastic bobbin further stabilizes thread tension at high speeds. Optional laser cutting cloth trimmer specifications expand capability for soft materials such as knits, supporting accurate cut-and-sew operations in a single automated setup. Combining a large sewing field, intelligent motion control, digital pattern management, and advanced tension and presser technologies, the PS-900 is an ideal platform for manufacturers seeking higher automation, repeatability, and premium seam quality.
