SKU
NS-5610-600-900

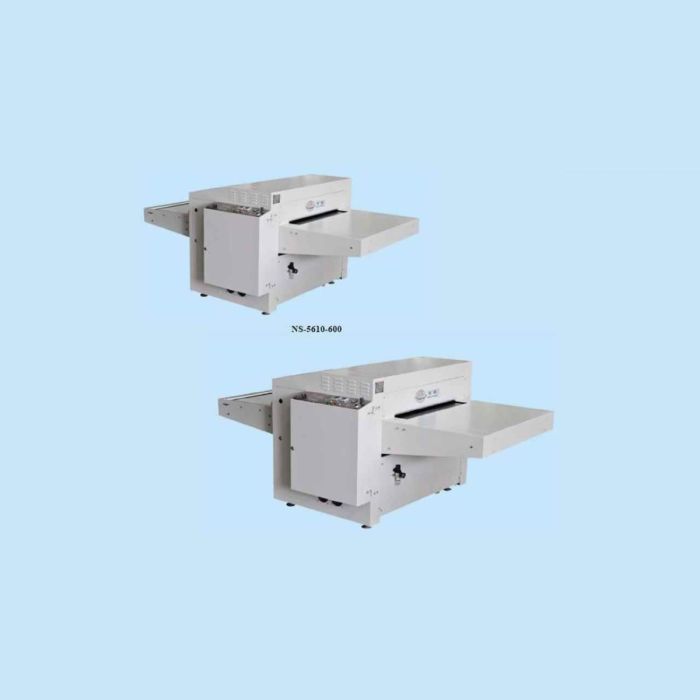

Ngaishing NS-5610-600 & 900 Fusing Machines
₹1,228,800.00
"Suitable for waist band, front placket, collar, sleeve and cuff fusing and pressing"
Fusing Machine
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Hong Kong SAR China
Features
- Suitable for waist band, front placket, collar, sleeve and cuff fusing and pressing
- Apply upper & lower heater and thermostat; temperature is controlled accurately
- This machine is equipped with automatic belt balance system and the conveying speed is adjustable
- The pressing pressure is adjustable and the collecting table has air cooling device for better fusing effect
Technical Specifications
| Model | NS-5610-600 | NS-5610-900 |
| Power Supply | 3PH/380V/50Hz | 3PH/380V/50Hz |
| Heater Power (kW) | 9.6 | 12 |
| Belt Width (mm) | 600 | 900 |
| Pressure Increasing Mode | By Air Cylinder | |
| Compressed Air Pressure (kgf/cm2) | 5 | 5 |
| Average Fusing Pressure (kgf/cm2) | 1 | 1 |
| Upper Heater (kW) | 4.8 | 6 |
| Lower Heater (kW) | 4.8 | 6 |
| Max. Temp. (C) | 200 | 200 |
| Machine size (mm) | 2550x1270x1180 | 2540x1560x1160 |
