SKU
LZ-2290A-SR-7

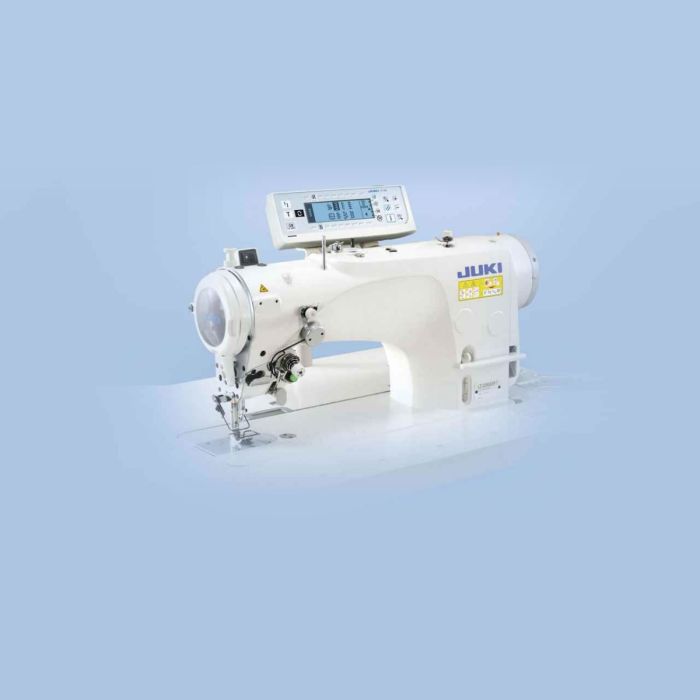

Computer-controlled, Direct-drive, High-speed, 1-needle, Lockstitch, Zigzag Stitching Machine with Automatic Thread Trimmer (quick reverse type and bird's nest prevention type)
₹690,000.00
"1-Needle, Lockstitch, Zigzag Stitching Machine with Automatic Thread Trimmer"
The machine is able to perform T-shape stitching and zigzag pattern stitching to broaden its range of applications.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
Features
- The machine is able to perform a variety of pattern stitching types
- Sewing patterns can be programmed with ease with the IP – 100D operation panel
- Newly developed feed mechanism is employed
- The machine helps to achieve a comfortable working environment
- Shape-tacking patterns can be changed with ease
- Basic functions of the predecessor model have been incorporated into this machine
Technical Specifications
| Technical Specifications - LZ-2290A-SR-7 | |
| Max. sewing speed | 5,000rpm*¹, T-shape stitching: 4,000rpm*² |
| Max. zigzag width*³ | 10mm |
| Max. feed amount | 5.0mm (normal / reverse feed) |
| Needle throw mechanism | Computer – controlled |
| Lift of the presser foot | By hand: 5.5mm / By knee: 10mm |
| Thread take-up | Rotary type |
| Number of patterns for standard stitching | 14 types / 20 patterns |
| Custom pattern memory capacity | Internal memory: Max. 20 patterns / Extended memory: Max. 999 pattern |
| Max. number of stitches | Max. 500 stitches / patterns |
| Memory medium | EEP-ROM(internal)/SmartMedia (extended) |
| Distance from needle to machine arm / Bed size | 300mm / 517mm x 178mm |
