DLU-5490N

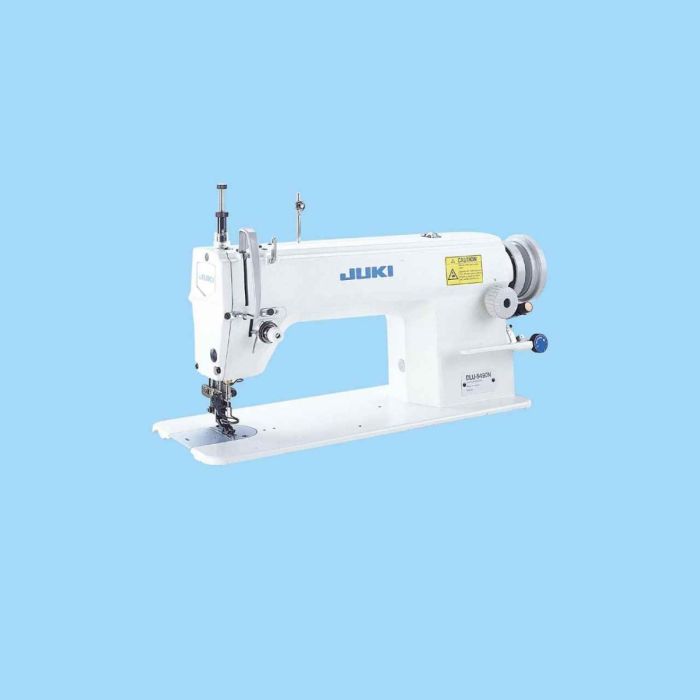

1-needle, Bottom and Variable Top-feed Lockstitch Machine
₹330,000.00
"1-needle, Bottom & Variable Top-feed Lockstitch Machine"
With its bottom and variable top-feed mechanism, the machine widely adapts to diversified applications and helps promote the production of upgraded-quality products while increasing efficiency.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
Features
- The partial shirring device permits very easy shirring (PF-6).
- The durability of the walking foot has been dramatically improved.
- Ideally balanced top feed and bottom feed.
- The maximum top feed amount is 8mm.
- The maximum lift of the presser foot is 13mm.
Technical Specifications
| Technical Specifications - DLU-5490N | |
| Max. sewing speed | 4,500rpm |
| Max. stitch length | 5mm |
| Max. top-feed amount | 8mm |
| Needle bar stroke | 30.7mm |
| Lift of the presser foot | By hand: 5.5mm, By knee: 13mm |
| Hook | Automatic-lubricating full-rotary hook |
| Lubrication | Automatic |
