SKU
DLN-6390-7

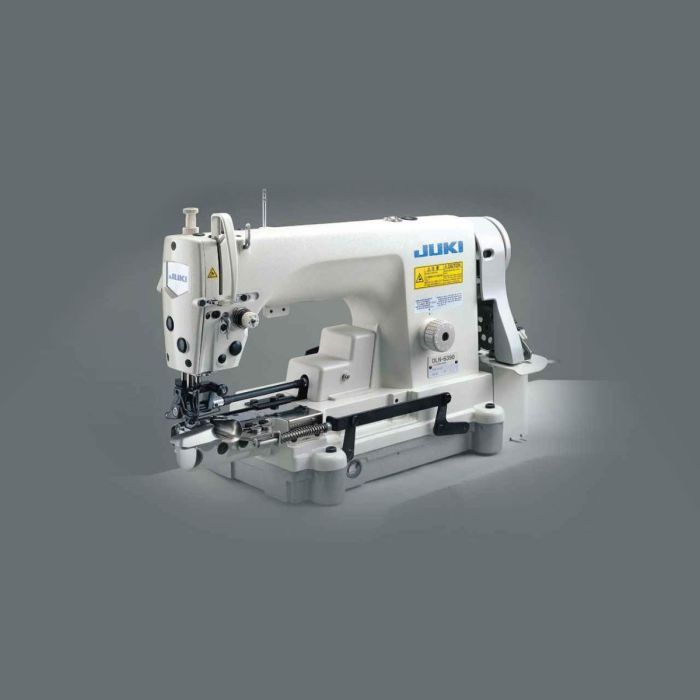

High-speed, Cylinder-bed, 1-needle, Needle-feed Lockstitch Machine with Large Hook
₹636,000.00
"Lockstitch Machine with Large Hook with automatic thread trimmer."
This newest and most advanced machine has been developed in the pursuit of upgraded seam quality and improved workability in bottom hemming processes.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
Features
- The machine offers excellent seam quality and sewing capabilities.
- Highly consistent and reliable thread trimmer mechanism
- Efficient work ability
- The lubrication mechanism effectively reduces oil stains on the material
Technical Specifications
| Technical Specifications -DLN-6390-7 | |
| Application | Bottom-folding and hemming (lock stitch type) |
| Max. sewing speed | 5,000sti/min* |
| Stitch length | Standard gears: 3.2mm (2.8mm) / Supplied gears: 2.3mm, 3.6mm / Optional gears: 2.1mm, 2.5mm, 4.2mm (utilized by changing pitch conversion gears) |
| Needle bar stroke | 35mm |
| Hook | Automatic-lubrication type exclusive full-rotary 1.7-fold hook |
| Lift of the presser foot | Max. 14mm |
| Lift of the presser foot | Top- and bottom-roller style |
| Cylinder-bed diameter | 180mm |
