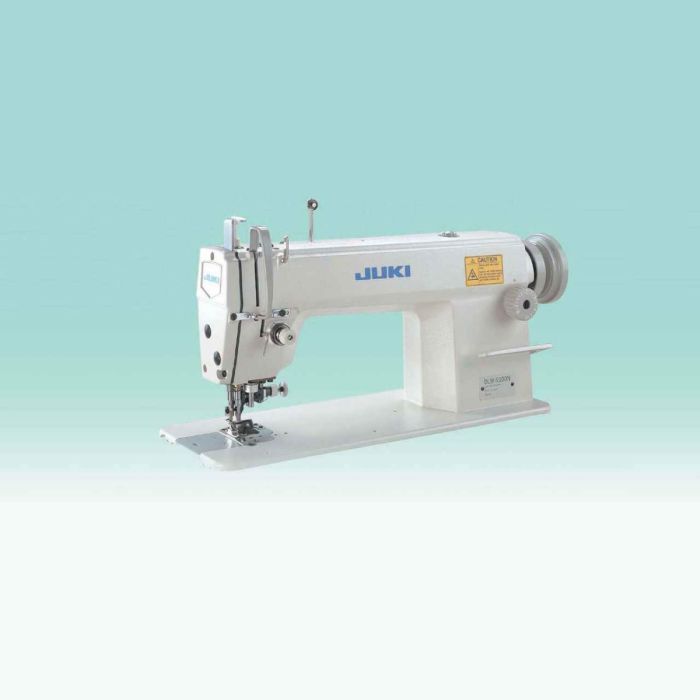

JUKI DLM-5200N Single Needle Lock Stitch Machine
"1-needle, Lockstitch Machine with Edge Trimmer"
The highly efficient lockstitch machine which assures the consistent quality of finished seams comes with a sharp knife capable of cutting various types of material.
Manufacturer Warranty
12 Month manufacturer warranty
Free Service
12 Month Free Service from Invoice Date
Distributor Warranty
3 Month IIGM Warranty
Designed in Japan
Features
- Beautifully finished lock stitched seams
- The knife is so sharp that it can cut any type of material
- During operation, the type of stitching can be easily changed between lockstitch alone and lockstitch with knife.
- The adjustment of the needle and needle gauge can be made by the simple change of the sub-gauges
- The maximum stitch length for the DLM-5200N has been increased to 5mm
- The exclusive arm-shaped machine head makes the material easier to handle
- The operating noise and vibration of this model are far less than its predecessors
- This model is designed as the optimum for high-speed sewing
Technical Specifications
| Technical Specifications - DLM-5200N | |
| Max. sewing speed | 4,500rpm |
| Max. stitch length | 5mm (normal/reverse feed) |
| Needle bar stroke | 30.7mm |
| Lift of the presser foot | By hand: 4mm, By knee: 10mm |
| Hook | Automatic-lubricating full-rotary hook |
| Max. thickness of the material to be cut | 4mm |
| Lubrication | Automatic |
